30/60 min Painting Finish Fire Resistant Wooden Door With Perlite Board Infilling

Product Details:
Place of Origin: CHINA
Brand Name: ZHONGWO
Certification: Intertek,BS,CCC
Model Number: ZW-MM04
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inside Bubble Bags+ Strong Carton
Delivery Time: 45 Days After Payment Received
Payment Terms: western union, moneygram,cash, l/c, t/t
Supply Ability: 600 Sets per Day

Detail Information

Material: Chinese Fir Fire Rating: 30/60 Min
Thickness Of Door Leaf: 40/45 Mm Frame Depth: 90/112 Mm
Infilling: Fireproof Perlite Board Weight: 25-30Kg/m2
Finish: Fir Laminate Color: Customized
Size: Customized Size Application: Residential/Commercial Building
High Light:

fire rated wood doors

,

hardwood fire doors

Product Description

30/60 min Painting Finish Fire Resistant Wooden Door With Perlite Board Infilling

Fire Resistant Wooden Door

Product Description

Zhongwo BS wooden fire doors are all tested and certified according to BS476:22 and EN1634:1. Testing house for us is Intertek. We can provide BS certificates for steel fire doors of different fire ratings up to 90mins.



Year Output 30,0000Pcs Name Stoving varnish fire door
Color Multiple choice Special Properties Fire proof
Texture PVC Size Customizable

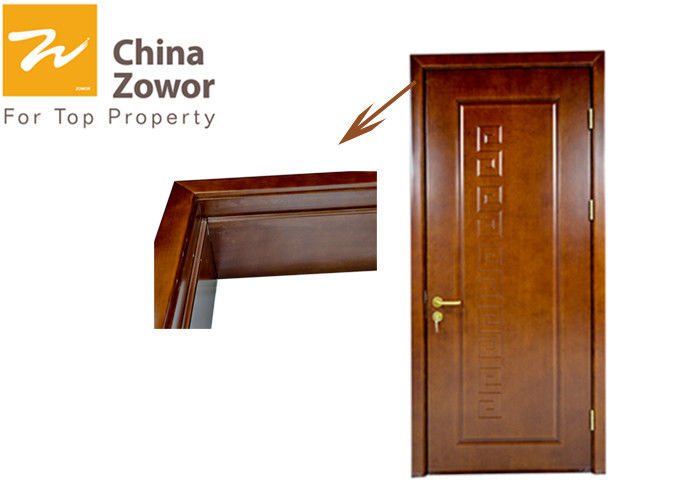

The door frame adopts the composite structure of fire retardant Chinese fir and fire board, and adds a layer of fire board with thickness up to 8mm on the face of wood to meet the fire. The decorative style can be customized according to the needs of users. All the contact parts of door frame and door leaf are equipped with fireproof and smoke resistant expansion sealing strips, which can expand at critical time to prevent deadly smoke from passing through.



The door leaf consists of fire -retardant Chinese fir skeleton inside of which environment friendly pertile fire board is filled,and decorative layer with fire panel. The reasonable structure makes the whole door withstand high temperatures up to 1000 ℃. The decorative surface adopts melamine veneer, which has high compressive strength and scratch resistance and can adapt to the harsh construction environment. Optional decorative surface can achieve better decoration effect.

Standard hole size

Single open - 0618 0620 0820 0821 0824 0920 0921 0924 1020 1021 1023



Main technical performance



1. Fire Resistance Rating: Grade A is 1.5h, Grade B is 1.0h, and Grade C is 0.5h.

2. Sound Insulation: It has good sound insulation effect, and the sound insulation index of Grade C products is RW ≥ 23dB.

3. Decorative: Electrostatic powder spray on surface, beautiful and durable, available in a variety of colors to choose.



Determination of the Opening Direction of Fire Doors



The fire door is generally a normally closed external door, and it opens in the direction of evacuation. Standing on the front of the door facing the hinge, if the hinge is on your right, it’s opening outward right.



Fire Resistance Rating Classification



Name Fire Resistance Performance Code







Fully Heat Insulated Doorsets(Class A)



Fire Insulation ≥0.50h

Fire Integrity ≥0.50h

A0.50

(Grade C)

Fire Insulation ≥1.00h

Fire Integrity ≥1.00h

A1.00

(Grade B)

Fire Insulation ≥1.50h

Fire Integrity ≥1.50h

A1.50

(Grade A)

Fire Insulation ≥2.00h

Fire Integrity ≥2.00h

A2.00

Fire Insulation ≥3.00h

Fire Integrity ≥3.00h

A3.00

Partially Heat Insulated Doorsets(Class B)





Fire Insulation ≥0.50h

Fire Integrity ≥1.00h B1.00
Fire Integrity ≥1.50h B1.50
Fire Integrity ≥2.00h B2.00
Fire Integrity ≥3.00h B3.00

No Heat Insulated Doorsets(Class C)



Fire Integrity ≥1.00h C1.00
Fire Integrity ≥1.50h C1.50
Fire Integrity ≥2.00h C2.00
Fire Integrity ≥3.00h C3.00



30/60 min Painting Finish Fire Resistant Wooden Door With Perlite Board Infilling 0



Why Choose Us?



1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

More than 20 years experience in fire door industry.
