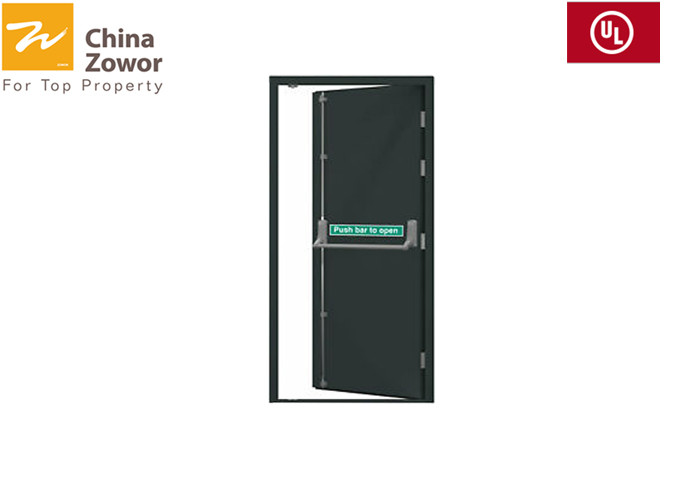

Powder Coated Galvanized Steel Single Leaf FD30 Fire Door / 90 mm Frame Depth

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM02(T)

Detail Information

Fire Rating: 30 Min Size: Customized
Opening Degree: 90-120 Degrees Opening Force: 50 N
Opening Direction: Right Hand / Outward Thickness Of Door Leaf: 40 Mm
Thickness Of Steel Sheet For Door Frame: 1.2 Mm Thickness Of Steel Sheet For Door Leaf: 0.8 Mm
Frame Depth: 90 Mm Infilling: 38 Mm Fireproof Perlite Board
Color: Choice Is Available.
High Light:

30 minute fire door

,

half hour fire door

Product Description

Gal. Steel FD30 Fire Door







Certification



All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation.



Powder Coated Galvanized Steel Single Leaf FD30 Fire Door / 90 mm Frame Depth 0

Features



Item Galvanized Steel Double Leaf FD30 Fire Door
Eco-friendly& Healthy Infilling Material All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
High Weather Resistance The advanced surface treatment ensures our steel fire doors high anit-corrosion and anti-damp performance, thus also long service life.
Beautiful Appearance We introduce the process of heat transfer printing and powder coating instead of traditional painting process to ensure the decorative and environment-friendly performance of our steel fire doors.
Little Smoke or Flame Leakage The introduction of gap covering steel plate can stop almost all smoke or flames spreading through gaps between door leaves and door frames.
Sturdy Structure We weld 3.0mm thick reinforcing steel plates in door frames and C Type 48mmX 16mm skeleton in door leaves.
Small Door Leaf Opening Force Door leaf opening force of our rosewood steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized Products Nearly all of our steel fire doors can be customized as your request.





Door Leaf



Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3. And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.



Door Frame



Thickness of the galvanized steel sheet for the fd30 fire door frame starts from 1.2 mm via 1.5 mm to 1.8 mm, or even 2.0 mm. Inside there is also fireproof perlite board as infilling material and the frame depth reaches at least 90 mm. We can also manufacture FD30 fire door frames in a range of finishes according to your requirements. Also we will make you suggestions on finishes choice for different applications.





Product Name FD30 Fire Door
Fire Rating 30 min
Weight 20-25Kg/m2
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf ≧0.8 mm
Thickness of Steel Sheet of Door Frame ≧1.2 mm
Thickness of Door Leaf 40 mm
Frame Depth 90 mm
Opening Degree 90°-130°
Open Style Swing Open, Left Handed, Right Handed
Infilling Material 30min: 38 mm Fireproof Perlite Board(300±30kg/m3)
Surface Treatment

Powder Coating;

Heat Transfer Printing

Color

Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request

Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Fireproof Seal Strip FPJ-A-15X 2
Package Inside Bubble Bags + Strong Carton + Wooden Frame
Delivery Time 35 Days After Payment Received





Why Choose Us?



1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.
