Customized Size 60/90 min 0.8/1.0 mm Galvanized Steel Fire Safety Door For Apartments

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-SM08

Detail Information

Material: Galvanized Steel Fire Rating: 60/ 90 Min
Thickness Of Door Leaf: 45/55 Mm Frame Depth: 112/120 Mm
Thickness Of Steel Sheet For Door Leaf: 0.8/1.0 Mm Thickness Of Steel Sheet For Door Frame: 1.2/ 1.5 Mm
Surface Treatment: Powder Coated & Heat Transfer Printing Opening Degree: 90-180 Degrees
Glass Type: Double Glazing Composite Fireproof Glass Accessories: International & Chinese Brand
High Light:

fire protection door

,

fire resistant door

Product Description

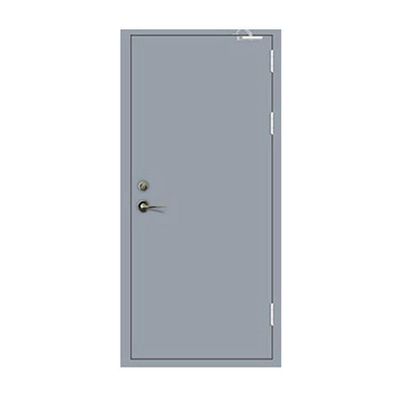

Customized Size 60/90 min 0.8/1.0 mm Galvanized Steel Fire Safety Door For Apartments

Customized Size 60/90 min 0.8/1.0 mm Galvanized Steel Fire Safety Door For Apartments 0

Product Description

Zhongwo steel fire door is widely used in all kinds of public fire -proof areas because of its solid structure, simple shape and beautiful surface. Inlaid with fire-proof expansion sealing pieces, the door frame is made of high quality galvanized steel strip, which is one-time rolled and formed through the special production line, without impact sound when closing. Beams are connected with mullions by 90° angle welding, and the large size door frame can be assembled with bolts. The door leaf adopts the process that high-quality cold-rolled galvanized steel sheet is bent by the bending machine precisely, and its interior is filled with green and perlite board which has characters of fireproof, heat & sound insulation and its surface adopts technology without welding spots, so that to get smooth appearance.


Technical Specification



1. It’s designed based on GB12955-2008 Standards Fire Doors, Wind Resistance GB/T 7106-2008, Gas Tight GB/T 7106-2008, Water Tight GB/T 7106-2008.

2. There is cold rolled galvanized steel sheet with 3mm for stiffening on fire hinge and fire closer point.

3. Filling Process for Door Core Material: Tamping

4. There is cold rolled galvanized steel sheet with 1.2mm around and inside the door leaf.

5. It’s applied in the Tunnel and special places where there is wind pressure. It adopts unconventional installation method.



Specification



Product Name  Apartment Steel Fire Door
Fire Rating 60 min/ 90min
Certificate CCC, ISO9001:2008;
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 0.8 mm
Thickness of Steel Sheet of Door Frame 1.2 mm
Thickness of Door Leaf

90min: 55 mm

60min: 45 mm

Frame Depth

90min: 120 mm

60min: 112 mm

Open Style Swing Open, Left Handed, Right Handed
Infilling Material

90min: 53 mm Fireproof Perlite Board(400±40kg/m3)

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

Surface Treatment

PVC Coating;

Powder Coating;

Heat Transfer Printing

Color

Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request

Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Glass Structure

Glazing Layer+Fireproof Liquid+Glazing Layer

Fireproof Seal Strip

90min: FPJ-B-20X 2

60min: FPJ-A-15X 2

Or Customized

Hardware High Quality Fire Lock, Fire Bolt, Fire Hinge, Fire Sequencer, Fir Door Closer and Others as Request
Warranty 2 years
Package Inside Bubble Bags with Outside Wooden Frame
Delivery Time 35Days After Payment Received





Why Choose Us?



1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

More than 20 years experience in fire door industry.



Packaging&Delivery


1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Customized Size 60/90 min 0.8/1.0 mm Galvanized Steel Fire Safety Door For Apartments 1
