Steel 120 Minute Fire Rated Doors With UL Listed Prime Paint Fireproof Steel Door
Contact Person : Zowor
Phone Number : +86-13393731249
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Inside Bubble Bags+ Strong Carton+Wooden Frame||Delivery Time :||35 Days After Payment Received|
|Payment Terms :||western union, moneygram,cash, l/c, t/t||Supply Ability :||600 Sets per Day|
|Place of Origin:||CHINA||Brand Name:||ZHONGWO|
|Certification:||BS， UL, CCC||Model Number:||ZW-GM02(T)|
|Fire Protection Time (H):||30 Min||Material For Door Frame:||Galvanized Steel|
|Thickness Of Fireproof Board For Door Leaf(mm):||Fireproof Perlite Board||Fireproof Board Of Door Frame:||Swing Open, Right / Left Hand|
|Thickness Of Steel Sheet For Door Frame:||1.2 Mm||Thickness Of Steel Sheet For Door Leaf:||0.8 Mm|
|Frame Depth:||90 Mm||Size:||Customized Size|
|Colors:||Customized||Finishes:||Powder Coating; Heat Transfer Printing; Ready To Paint|
30 minute fire door,
half hour fire door

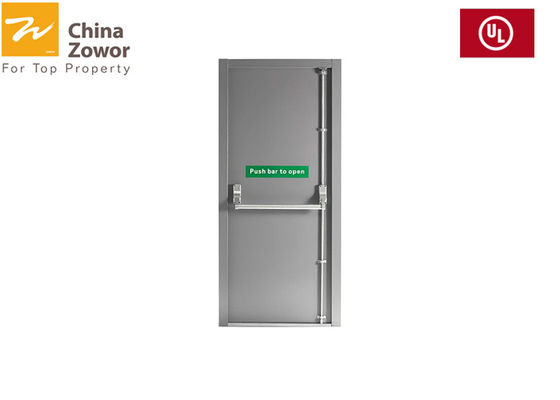

Powder Coating Finish 40 mm FD30 Fire Door For Strong & Weak Electrical Rooms
FD30 Fire Door For Strong & Weak Electrical Rooms
All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation.
|Item||FD30Steel Fire Door|
|Eco-friendly& Healthy Infilling Material||All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.|
|Advanced Surface Treatment||We introduce the process of heat transfer printing instead of traditional painting process to ensure the decorative and environment-friendly performance of rosewood steel fire door.|
|Small Door Leaf Opening Force||Door leaf opening force of our rosewood steel fire door is no more than 50N.|
|Customized Products||Nearly all of our steel fire doors can be customized as your request.|
|Great Performance in Fire Integrity & Insulation||The highest temperature rise of door leaf in case of fire is only 63.9
℃, on door frame is 69.3 ℃, both are far lower than the standard.
|Product Name||FD30 Steel Fire Door|
|Fire Rating||30 min|
|Material of Door Leaf||Galvanized Steel Sheet|
|Material of Door Frame||Galvanized Steel Sheet|
|Thickness of Steel Sheet of Door Leaf||≧0.8 mm|
|Thickness of Steel Sheet of Door Frame||≧1.2 mm|
|Thickness of Door Leaf||40 mm|
|Frame Depth||90 mm|
|Open Style||Swing Open, Left Handed, Right Handed|
|Infilling Material||30min: 38 mm Fireproof Perlite Board(300±30kg/m3)|
Heat Transfer Printing
Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request
Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
|Fireproof Seal Strip||FPJ-A-15X 2|
|Package||Inside Bubble Bags + Strong Carton + Wooden Frame|
|Delivery Time||35 Days After Payment Received|
Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3. And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.
Thickness of the galvanized steel sheet for the fd30 fire door frame starts from 1.2 mm via 1.5 mm to 1.8 mm, or even 2.0 mm. Inside there is also fireproof perlite board as infilling material and the frame depth reaches at least 90 mm. We can also manufacture FD30 fire door frames in a range of finishes according to your requirements. Also we will make you suggestions on finishes choice for different applications.
We can provide you different kinds of accessories including fire door closers, fire door holders and fire locks, hinges and handles, latches of top quality. There are many brands from China and International countries for your choice, for example Kinlong, Hardrock and Dorma etc.
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
