Walnut Wood Grain Finish Left Hand FD30 Fire Door / 40 mm Half Hour Fire Door

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-MM01

Detail Information

Material: Galvanized Steel Infilling: 38 Mm Fireproof Perlite Board
Color: Walnut, Oak, Rosewood Or As Request Thickness Of Steel Sheet For Door Frame: 1.2 Mm
Thickness Of Steel Sheet For Door Leaf: 0.8 Mm Frame Depth: 90 Mm
Highest Temperature Rise: 63.9 ℃ Opening Force: 50 N
Opening Degree: 90-120 Degrees Size: Customized Size
High Light:

30 minute fire door


half hour fire door

Product Description

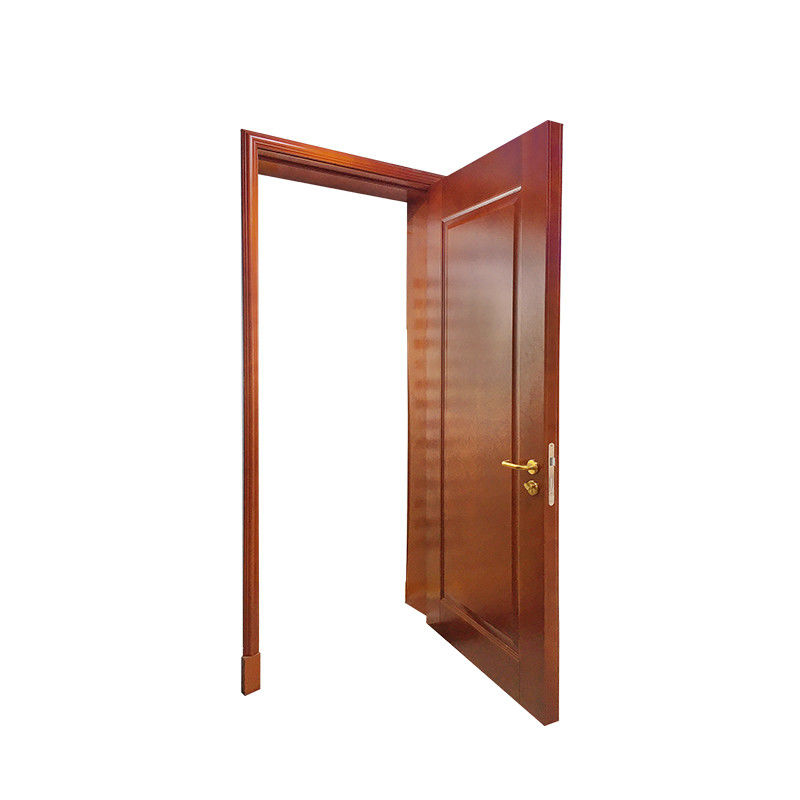

Walnut Wood Grain Finish Left Hand FD30 Fire Door / 40 mm Half Hour Fire Door

Steel FD30 Fire Door


All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation.Thickness of the galvanized steel sheet for the fd30 fire door frame starts from 1.2 mm via 1.5 mm to 1.8 mm, or even 2.0 mm. Inside there is also fireproof perlite board as infilling material and the frame depth reaches at least 90 mm. We can also manufacture FD30 fire door frames in a range of finishes according to your requirements. Also we will make you suggestions on finishes choice for different applications.Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.




Beautiful Appearance: We introduce the process of heat transfer printing instead of traditional painting process to ensure the decorative and environment-friendly performance of our steel fire doors.


Small Door Leaf Opening Force: Door leaf opening force of our rosewood steel fire door is no more than 50N, which is much smaller than 80N according to BS476-22:1987.


High Performance of Fire Integrity & Insulation: In fire testing the average temperature rise of our FD30 Fire Doors reaches only 63.9℃(Standard: 140℃) on the surface of door leaf, the highest point 69.3℃(Standard: 180℃); and on the door frame the highest temperature rise is also only 80.6℃(Standard: 360℃).


Perfect Process: The demensional deviation between theoretic design and practical production is 0 mm.


Customized Products: All of our steel fire doors can be customized as your request.



Product Name FD30 Fire Door
Fire Rating 30 min
Weight 20-25Kg/m2
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf ≧0.8 mm
Thickness of Steel Sheet of Door Frame ≧1.2 mm
Thickness of Door Leaf 40 mm
Frame Depth 90 mm
Opening Degree 90°-120°
Open Style Swing Open, Left Handed, Right Handed
Infilling Material 30min: 38 mm Fireproof Perlite Board(300±30kg/m3)
Surface Treatment

Powder Coating;

Heat Transfer Printing


Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request

Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Fireproof Seal Strip FPJ-A-15X 2
Package Inside Bubble Bags + Strong Carton + Wooden Frame
Delivery Time 35 Days After Payment Received




1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Why Choose Us?


1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.
