|Fire Rating:||0.5 Hour||Size:||Customized Size|
|Close Direction:||Outward, Right Hand||Thickness Of Door Leaf:||40 Mm|
|Steel Thickness Of Door Frame(mm):||1.2 Mm||Thickness Of Door Frame (mm):||0.8 Mm|
|Frame Depth:||90 Mm||Surface Treatment:||Powder Coated|
|Opening Degree:||90-120 Degrees||Opening Force:||50 N|
30 minute fire door,
half hour fire door

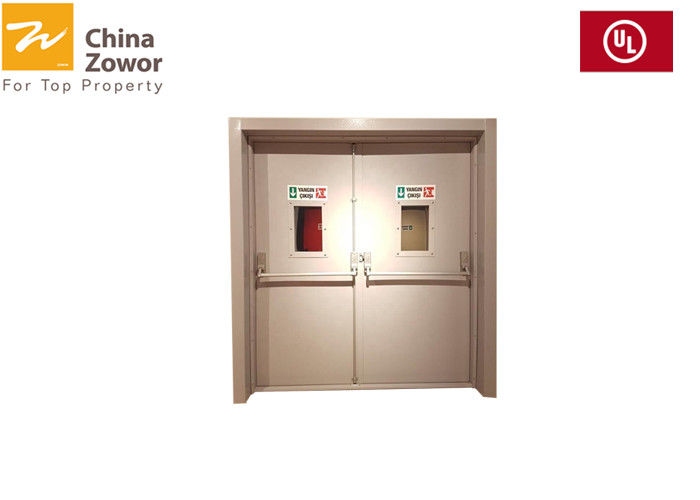

Double Swing Gal. Steel FD30 Fire Door For Commercial Buildings/ Fire Rated Metal Door
Steel Insulated FD30 Fire Door
All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation.
Generally our FD30 steel fire doors sets consist of door frame and door leaf. We can also provide individually the door frame or door leaf.
Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3. And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.
Thickness of the galvanized steel sheet for the fd30 fire door frame starts from 1.2 mm via 1.5 mm to 1.8 mm, or even 2.0 mm. Inside there is also fireproof perlite board as infilling material and the frame depth reaches at least 90 mm. We can also manufacture FD30 fire door frames in a range of finishes according to your requirements. Also we will make you suggestions on finishes choice for different applications.
|Product Name||FD30 Fire Door|
|Fire Rating||30 min|
|Material of Door Leaf||Galvanized Steel Sheet|
|Material of Door Frame||Galvanized Steel Sheet|
|Thickness of Steel Sheet of Door Leaf||≧0.8 mm|
|Thickness of Steel Sheet of Door Frame||≧1.2 mm|
|Thickness of Door Leaf||40 mm|
|Frame Depth||90 mm|
|Open Style||Swing Open, Left Handed, Right Handed|
|Infilling Material||30min: 38 mm Fireproof Perlite Board(300±30kg/m3)|
Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request
|Fireproof Seal Strip||FPJ-A-15X 2|
|Package||Inside Bubble Bags + Strong Carton + Wooden Frame|
|Delivery Time||35 Days After Payment Received|
We can provide you different kinds of accessories including fire door closers, fire door holders and fire locks, hinges and handles, latches of top quality. There are many brands from China and International countries for your choice, for example Kinlong, Hardrock and Dorma etc.
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
