Double Swing 55 mm Gal. Steel FD90 Fire Door/ 16 Ga. Face Sheet/ 72''X 84'' Size

Minimum Order Quantity : 5 Sets Price : Negotiable
Packaging Details : Perlite Cotton+Bubble Bags+Strong Carton Delivery Time : 45 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM05(T)

Detail Information

Thickness Of Door Leaf: 55/64 Mm Frame Depth: 120 Mm
Face Sheet Of Leaf: 16-18-20 Ga. Face Sheet Of Frame: 14-16-18 Ga.
Finish: Powder Coated, Prime Paint, Wood Grain Finish Color: Customized
Hardware: UL/BS Tested Hardware Application: Commercial Applications
High Light:

90 minute fire rated doors


fire rated timber door

Product Description

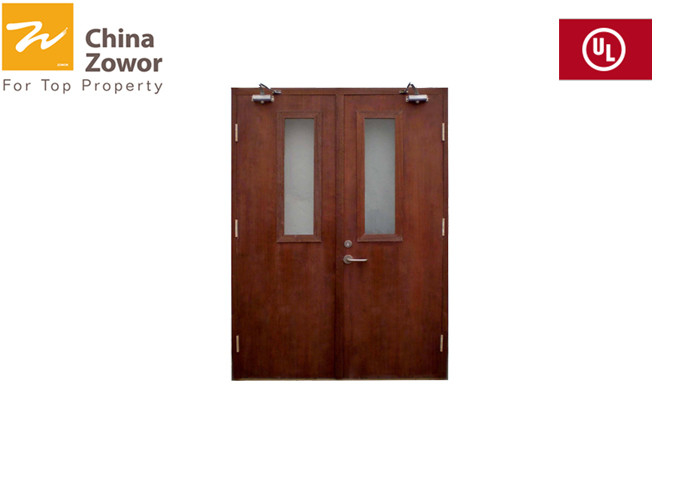

Double Swing 55 mm Gal. Steel FD90 Fire Door/ 16 Ga. Face Sheet/ 72''X 84'' Size

FD90 Fire Rated Steel Door



All of Zhongwo FD90 fire rated steel doors have been tested in accordance with the BS476:22 & EN1634:1 and also UL10(B) & UL10(C).


Here is a description of the specifications of steel fire doors.



Product Name Double Swing Steel Fire Door
Fire Rating 30/60/90/120 min
Certificate BS, WHI,UL
Thickness of Door Leaf 45mm/50mm/55mm/64mm
Frame Depth 120 mm
Open Style Swing Open
Infilling Material Fireproof Perlite Board(400±40kg/m3) or Honeycomb Core
Finish Powder Coated, Prime Paint, Wood Grain Finish or Customized as your request
Color RAL Color
Fireproof Seal Strip FPJ-B-20X 2 or Customized

Standard: two tested locksets, 6 high quality hinges and a heavy duty door closer;

exit device and security hardware are also options.

Shipping Port Qingdao Port or as Request
Package Standard:perlite cotton+bubble bags+strong carton; Option:wooden pallet
Delivery Time 45Days After Payment Received




Standard & Certification:

Tested to UL 10(B) & UL 10(C)

Tested as per BS476 Part 22, BS EN 1634




These doors can be used in high-rise buildings, metro railway stations, telecom centers, power plants, cellular network stations, garment processing units, shopping malls, industrial plants, multiplexes, hotels, auditoriums, software parks, restaurants, etc.




Item 90 mins Fire Rated Steel Door for Boiler and Electricla Room
Eco-friendly& Healthy Infilling Material All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
Flexible Opening Door leaf opening force of our double swing flush panel steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Top Fire Insulation Performance Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃.



1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Double Swing 55 mm Gal. Steel FD90 Fire Door/ 16 Ga. Face Sheet/ 72''X 84'' Size 2
