45mm Yellow Color Single Leaf FD60 Steel Fire Door With Glass Window Size 48''X84‘’

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM05(T)

Detail Information

Fire Rating: 60 Min Material: Galvanized Steel
Standard: BS476-22 Thickness Of Door Leaf: 54 Mm
Frame Depth: 120 Mm Infilling: Fireproof Perlite, Honeycomb Paper, Polyethylene Foam,Rockwool
Weight: 25-30Kg/m2 Finish: Powder Coated; Primer Paint
Color: White Or Customized MOQ: 5 Sets
High Light:

60 minute fire door


1 hr fire rated door

Product Description

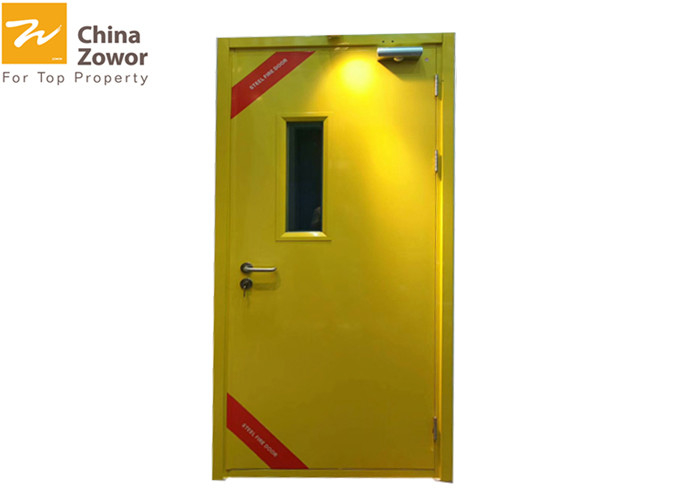

45mm Yellow Color Single Leaf FD60 Steel Fire Door With Glass Window Size 48''X84‘’

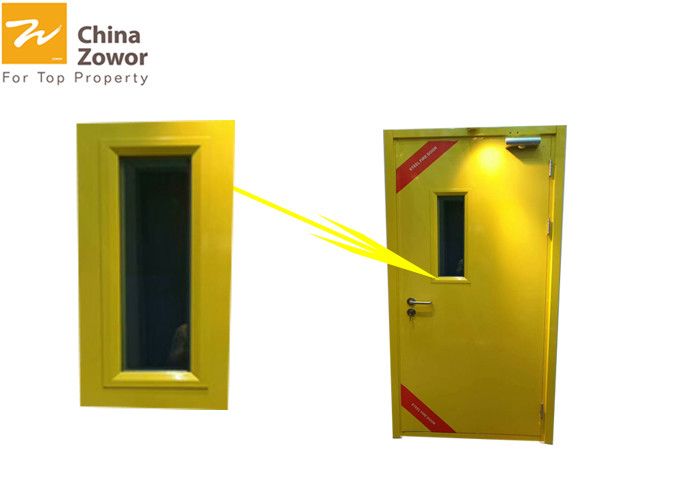

FD60 Steel Fire Door With Vision Panel


All FD60 steel fire door with vision panel are tested in accordance with the BS476-22 and EN1634-1. We can also provide you the needed certificates.




Product Name FD60 Steel Fire Door
Fire Rating 30 min/60 min/ 90min/120min
Certificate CCC, ISO9001:2008; UL; BS
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 0.8-1.6 mm
Thickness of Steel Sheet of Door Frame 1.0-2.0 mm
Thickness of Door Leaf

120min: 55 mm

90min: 55 mm

60min: 45 mm

30min:40 mm

Frame Depth

120min:55 mm

90min: 120 mm

60min: 112 mm

30min: 90 mm

Open Style Swing Open, Left Handed, Right Handed
Infilling Material

90min: 53 mm Fireproof Perlite Board(400±40kg/m3)

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper

Surface Treatment

Powder Coating

Primer Paint

Color RAL Colors or Customized

Single Open: 24mmX 350mmX 600mm

Double Open: 32mmX 350mmX 600mm

Or customized As Request

Fireproof Seal Strip

90min: FPJ-B-20X 2

60min: FPJ-A-15X 2

30min: FPJ-A-15X 2

Or Customized

Hardware High Quality Fire Lock, Fire Bolt, Fire Hinge, Fire Sequencer, Fir Door Closer and Others as Request
Warranty 2 years
Package Inside Bubble Bags with Outside Wooden Frame
Delivery Time 35Days After Payment Received


Production Process


45mm Yellow Color Single Leaf FD60 Steel Fire Door With Glass Window Size 48''X84‘’ 0



Door Furniture

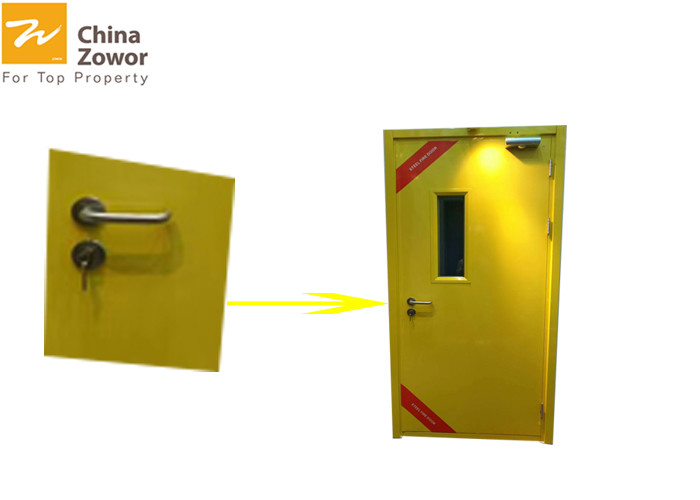

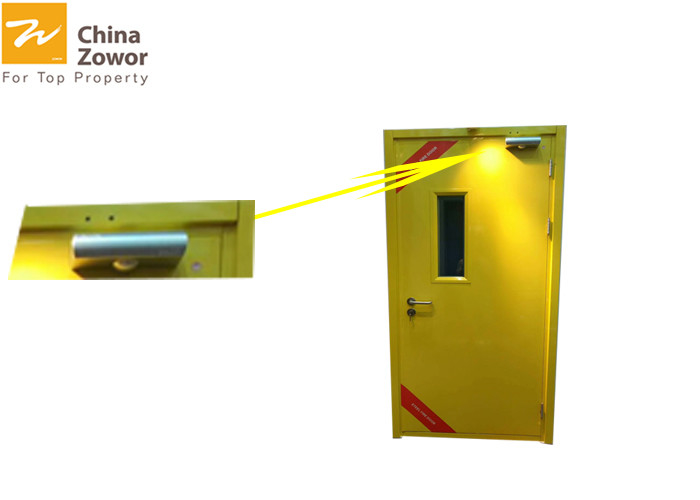

Generally FD60 single leaf fire door with vision panel consist of 4 pairs of fire hinges, 1 fire door closers, 1 fire lock with latch and 1 fire bolt as door furniture. We have different brands from China and international countries for your choice, for example Kinlong, Hardrock and Dorma etc. And we can also install accessories onto door totally as your request.



1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Why Choose Us?


1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.


Color Chart


45mm Yellow Color Single Leaf FD60 Steel Fire Door With Glass Window Size 48''X84‘’ 1
