60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings

Good quality Insulated Fire Door for sales
Good quality Insulated Fire Door for sales
Suggestion of Zhongwo Fire Door is very professional. I got their reply for the first time within 5 hours. Very efficient!

—— Martin

I made a inquiry for them, and got feedback within 30 mins, so fast! And the receptionist is very considerate and professional, gave me very practical and useful suggestions! Thank you!

—— Catherine

Wonderful service by Zhongwo! And the price of them is very competitive for me who only has limited amount of money to buy motel fire doors.

—— Brittain

The fire doors are all in good quality and thank you for the professional installation suggestions!

—— Kagalwala

I'm Online Chat Now

60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings

China 60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings supplier
60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings supplier 60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings supplier 60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings supplier 60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings supplier

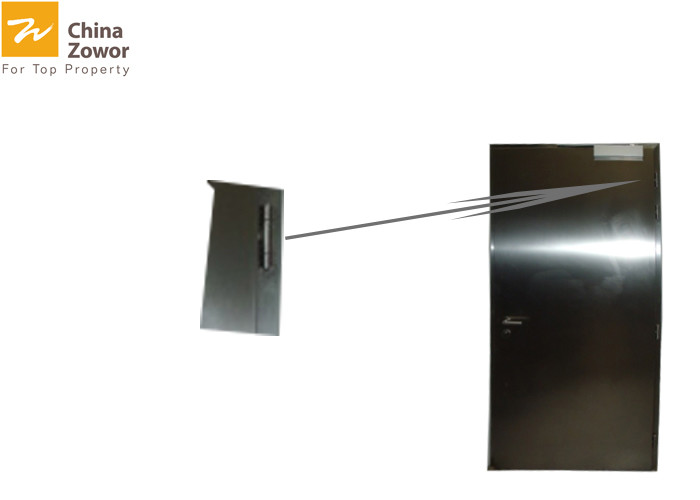

Large Image :  60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings

Product Details:

Place of Origin: CHINA
Brand Name: ZHONGWO
Certification: ISO9001:2008, CCC
Model Number: ZW-GM02(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inside Bubble Bags+ Strong Carton+Wooden Frame
Delivery Time: 35 Days After Payment Received
Payment Terms: western union, moneygram,cash, l/c, t/t
Supply Ability: 600 Sets per Day
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Fire Rating: 60 Min
Thickness Of Steel Sheet For Door Leaf: 0.8 Mm; 1.0 Mm Thickness Of Steel Sheet For Door Frame: 1.2 Mm; 1.5 Mm
Frame Depth: 112 Mm Size: Customized Size
Surface Treatment: Finished Opening Direction: Outward
Opening Degree: 90-180 Degrees Highest Temperature Rise:: 148.6℃

60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings

304 Stainless Steel Fire Door With Panic Bar





Product Description



Zhongwo Stainless Steel Fire Door is made of high quality 304 stainless steel sheet with fireproof perlite board as infilling material,can be applied at many positions in commercial buildings such as staircase access, corridors and emergency exit. The panic bar equipped with doors are all famous chinese or internationanl Brand like Kinlong and Dorma etc. The gap between door leaf and door frame is no more than 2 mm which is filled with smoke sealing strips of size 15 x 2.

It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire. 304 stainless steel contains elements of Nickel and Chromium which ensures the high corrosion resistance performance, thus Zhongwo stainless steel fire door provide you with longer operation life.All of our stainless steel fire doors are in pocession of CCC according to China national Standard GB12955:2008, which indicates the ensured quality of them.



Specification

Product Name Double Swing Silver 201/304 Stainless Steel Fire Door with Panic Bar
Fire Rating 60 min
Certificate CCC, ISO9001:2008
Material of Door Leaf 304 Stainless Steel
Material of Door Frame 304 Stainless Steel
Thickness of Steel Sheet of Door Leaf 0.8 mm; 1.0 mm
Thickness of Steel Sheet of Door Frame 1.2 mm; 1.5 mm
Thickness of Door Leaf

60min: 45 mm

Frame Depth

60min: 112 mm

Size Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request.
Open Style Swing Open
Infilling Material

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

Surface Treatment Finished
Color Silver
Glass

Standard:24mmX 200mmX 900mm;

32X 200mmX 900mm

Or Customized As Request

Fireproof Seal Strip

FPJ-A-15X 2

Warranty 2 years
Package Inside Bubble Bags+ Strong Carton+Wooden Frame
Delivery Time 35 Days After Payment Received





Product Advantage

Item Double Swing Silver 201/304 Stainless Steel Fire Door with Panic Bars
Top Quality and Eco-friendly& Healthy Infilling Material

All of our fireproof perlite boards must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.

Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains 457.3kg/m3, which are both great higher than the standard of 420kg/m3.

High Anti-Explosion Performance It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire.
High Anti-Corrosion Performance Thanks to the nickel and chromium elements in 201/304 stainless steel, oxidation process inside the fire door can be so obtuse as to non-oxidation. Man can even say that in dry circumstances its service life can be unlimited.
Small Door Leaf Opening Force Door leaf opening force of our stainless steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized Products Nearly all of our stainless steel fire doors can be customized as your request.



Packaging&Delivery

1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Why Choose Us?



1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

6. More than 20 years experience in fire door industry.



60 min Fire Rating/ 45 mm Emergency Exit Stainless Steel Fire Rated Doors For Commercial Buildings
