1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N

Good quality Insulated Fire Door for sales
Good quality Insulated Fire Door for sales
Suggestion of Zhongwo Fire Door is very professional. I got their reply for the first time within 5 hours. Very efficient!

—— Martin

I made a inquiry for them, and got feedback within 30 mins, so fast! And the receptionist is very considerate and professional, gave me very practical and useful suggestions! Thank you!

—— Catherine

Wonderful service by Zhongwo! And the price of them is very competitive for me who only has limited amount of money to buy motel fire doors.

—— Brittain

The fire doors are all in good quality and thank you for the professional installation suggestions!

—— Kagalwala

I'm Online Chat Now

1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N

China 1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N supplier
1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N supplier 1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N supplier 1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N supplier

Large Image :  1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N

Product Details:

Place of Origin: CHINA
Brand Name: ZHONGWO
Certification: ISO9001:2008, CCC
Model Number: ZW-GM02(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inside Bubble Bags+ Strong Carton+Wooden Frame
Delivery Time: 35 Days After Payment Received
Payment Terms: western union, moneygram,cash, l/c, t/t
Supply Ability: 600 Sets per Day
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Glass: Double Glazing Composite Fireproof Glass
Fire Rating: 60 Min Size: Customized Size
Infilling: Fireproof Perlite Board In Door Frame Thickness Of Steel Sheet For Door Frame: 1.2 Mm;
Thickness Of Steel Sheet For Door Leaf: 0.8 Mm; Opening Direction: Outward
Opening Degree: 90-180 Degrees Highest Temperature Rise: 148.6 ℃

1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N

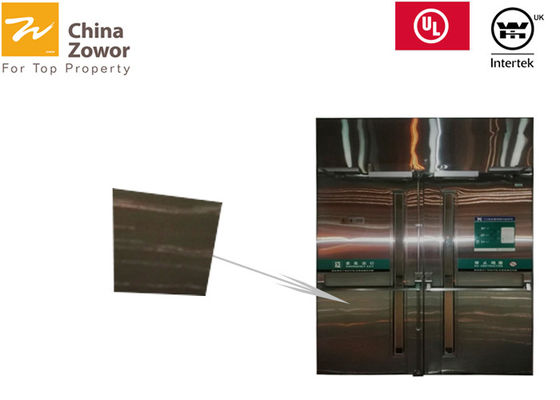

Stainless Steel Fire Rated Glass Door




Zhongwo Stainless Steel Fire Rated Glass Doors consist of door frame, glass panel, fire locks, handles and other accessories. Door Frame is made of 304 stainless steel sheet, inside it is filled with fireproof perlite board of high density 300±30kg/m3. Door leaf can be an entire glass panel or big size galss panels together with stainless steel panels, the glass is double glazing composite fireproof glass, the structure of the glass is two layers fireproof float glasses on both outer sides and fireproof liquid between them.  What's worth mentioning is that we bend the gap covering plate together with the stainless steel sheet for door leaf panels into once, which can save us a lot of time and cost for materials, thus a competitive price for our clients. Besides, the frame depth of the glass doors is 126 mm.

Product Advantage


ItemSingle Swing Silver 201/304 Stainless Steel Fire Door
Top Quality and Eco-friendly& Healthy Infilling Material

All of our fireproof perlite boards must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains457.3kg/m3, which are both great higher than the standard of 420kg/m3.

High Anti-Explosion PerformanceIt remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire.
High Anti-Corrosion PerformanceThanks to the nickel and chromium elements in 201/304 stainless steel, oxidation process inside the fire door can be so obtuse as to non-oxidation. Man can even say that in dry circumstances its service life can be unlimited.
Top Fire Insulation PerformanceAverage temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. And the highest temperature point on door frame reaches 140.8℃, also much lower than the standard of not beyond 360℃.
High Fire Integrity PerformanceAfter fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds.
Small Door Leaf Opening ForceDoor leaf opening force of our stainless steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized ProductsNearly all of our stainless steel fire doors can be customized as your request.


Specification


Product Name 201/304 Stainless Steel Glass Fire Door
Fire Rating60 min
CertificateCCC, ISO9001:2008
Material of Door Leaf304 Stainless Steel
Material of Door Frame304 Stainless Steel
Thickness of Steel Sheet of Door Leaf0.8 mm
Thickness of Steel Sheet of Door Frame1.2 mm
Thickness of Door Leaf

55 mm

Frame Depth

126 mm

SizeStandard: W1000X H2300(mm); 2100X 2300(mm) or Customized
Open StyleSwing Open
Infilling Material

53 mm Fireproof Perlite Board(300±30kg/m3)

Surface TreatmentFinished
ColorSilver
Glass

Double Glazing Composite Fireproof Glass

Fireproof Seal Strip

FPJ-A-15X 2

Warranty2 years
PackageInside Bubble Bags+ Strong Carton+Wooden Frame
Delivery Time35 Days After Payment Received



1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N

Packaging&Delivery
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Why Choose Us?

1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.


1.5 Hours 55 mm Stainless Steel Fire Rated Glass Doors For Hospital/ Opening Force 66 N
