Stainless Steel Hospital Insulated Fire Door 45 Minutes UL / BS Standard
Contact Person : Zowor
Phone Number : +86-13393731249
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Inside Bubble Bags+ Strong Carton+Wooden Frame||Delivery Time :||35 Days After Payment Received|
|Payment Terms :||western union, moneygram,cash, l/c, t/t||Supply Ability :||600 Sets per Day|
|Place of Origin:||CHINA||Brand Name:||ZHONGWO|
|Certification:||UL, CCC||Model Number:||ZW-GM02(B)|
|Material:||304 Stainless Steel||Fire Rating:||60/90 Min|
|Thickness Of Door Leaf:||45/ 55 Mm||Thickness Of Steel Sheet For Door Leaf:||0.8 Mm; 1.0 Mm|
|Thickness Of Steel Sheet For Door Frame:||1.2 Mm; 1.5 Mm||Frame Depth:||112/120 Mm|
|Opening Direction:||Outward||Opening Degree:||90-180 Degrees|
|Infilling:||Fireproof Perlite Board||Size:||Customized Size|
|Opening Force:||66 N|
stainless steel entry door,
metal fire door

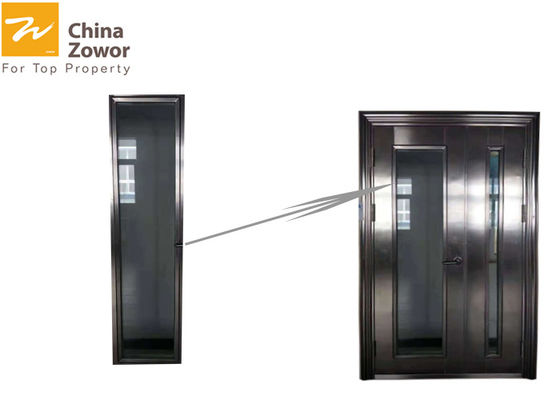

Customized 1/1.5 Hours Uequal Leaf Stainless Steel Fire Rated Doors With Spy Glass
201/304 Stainless Steel Fire Door
Zhongwo Stainless Steel Fire Door is made of high quality 304/201 stainless steel sheet with fireproof perlite board as infilling material, of which the density can reach 480kg/m3. 304/201 stainless steel contains elements of Nickel and Chromium which ensures the high corrosion resistance performance, thus Zhongwo stainless steel fire door provide you with longer operation life. It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire. All of our stainless steel fire doors are in pocession of CCC according to China national Standard GB12955:2008, which indicates the ensured quality of them.
Accessories of us are all top brand in China. We can also equip ironmongeries as your request.
|Product Name||Single Swing Silver 201/304 Stainless Steel Fire Door|
|Fire Rating||30 min/60 min/ 90min|
|Material of Door Leaf||201/304 Stainless Steel|
|Material of Door Frame||201/304 Stainless Steel|
|Thickness of Steel Sheet of Door Leaf||0.8 mm|
|Thickness of Steel Sheet of Door Frame||1.2 mm|
|Thickness of Door Leaf||
90min: 55 mm
60min: 45 mm
90min: 120 mm
60min: 112 mm
30min: 90 mm
|Size||Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request.|
|Open Style||Swing Open|
90min: 53 mm Fireproof Perlite Board(400±40kg/m3)
60min: 43 mm Fireproof Perlite Board(300±30kg/m3)
30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper
Standard:24mmX 200mmX 900mm;
32X 200mmX 900mm
Or Customized As Request
|Fireproof Seal Strip||
90min: FPJ-B-20X 2
60min: FPJ-A-15X 2
30min: FPJ-A-15X 2
|Package||Inside Bubble Bags with Outside Wooden Frame|
|Delivery Time||35Days After Payment Received|
|Item||Single Swing Silver 201/304 Stainless Steel Fire Door|
|Top Quality and Eco-friendly& Healthy Infilling Material||
All of our fireproof perlite boards must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains457.3kg/m3, which are both great higher than the standard of 420kg/m3.
|High Anti-Explosion Performance||It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire.|
|High Anti-Corrosion Performance||Thanks to the nickel and chromium elements in 201/304 stainless steel, oxidation process inside the fire door can be so obtuse as to non-oxidation. Man can even say that in dry circumstances its service life can be unlimited.|
|Top Fire Insulation Performance||Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. And the highest temperature point on door frame reaches 140.8℃, also much lower than the standard of not beyond 360℃.|
|High Fire Integrity Performance||After fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds.|
|Small Door Leaf Opening Force||Door leaf opening force of our stainless steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.|
|Customized Products||Nearly all of our stainless steel fire doors can be customized as your request.|
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
