Stainless Steel Hospital Insulated Fire Door 45 Minutes UL / BS Standard
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton+Wooden Frame | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | UL, CCC | Model Number: | ZW-GM02(B) |
|
Detail Information |
|||
| Material: | 201/ 304 Stainless Steel | Fire Rating: | 60/90 Min |
|---|---|---|---|
| Glass: | Double Glazing Composite Fireproof Glass | Hardware: | International & Chinese Brand |
| Infilling: | Fireproof Perlite Board | Opening Degree: | 90-180 Degree |
| Thickness Of Door Leaf: | 45/55 Mm | Frame Depth: | 112/120 Mm |
| Thickness Of Steel Sheet For Door Frame: | 1.2 Mm | Thickness Of Steel Sheet For Door Leaf: | 0.8 Mm |
| High Light: | stainless steel entry door,metal fire door |
||
Product Description

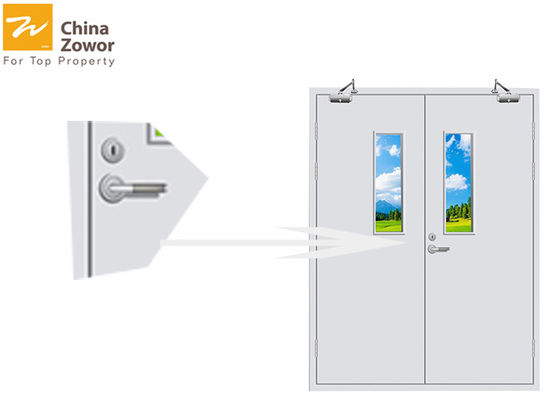

45/ 55 mm Stainless Steel Fire Rated Doors For Commercial Buildings/ Twin Doors
Stainless Steel Fire Rated Twin Doors
Product Description
Zhongwo Stainless Steel Fire Twin Door is made of high quality 304/201 stainless steel sheet with fireproof perlite board as infilling materia, 304/201 stainless steel contains elements of Nickel and Chromium which ensures the high corrosion resistance performance, thus Zhongwo stainless steel fire door provide you with longer operation life. It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire. All of our stainless steel fire doors are in pocession of CCC according to China national Standard GB12955:2008, which indicates the ensured quality of them.
Specification
| Product Name | Single Swing Silver 201/304 Stainless Steel Fire Door |
| Fire Rating | 30 min/60 min/ 90min |
| Certificate | CCC, ISO9001:2008 |
| Material of Door Leaf | 201/304 Stainless Steel |
| Material of Door Frame | 201/304 Stainless Steel |
| Thickness of Steel Sheet of Door Leaf | 0.8 mm |
| Thickness of Steel Sheet of Door Frame | 1.2 mm |
| Thickness of Door Leaf |
90min: 55 mm 60min: 45 mm 30min:40 mm |
| Frame Depth |
90min: 120 mm 60min: 112 mm 30min: 90 mm |
| Size | Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request. |
| Open Style | Swing Open |
| Infilling Material |
90min: 53 mm Fireproof Perlite Board(400±40kg/m3) 60min: 43 mm Fireproof Perlite Board(300±30kg/m3) 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper |
| Surface Treatment | Finished |
| Color | Silver |
| Glass |
Standard:24mmX 200mmX 900mm; 32X 200mmX 900mm Or Customized As Request |
| Fireproof Seal Strip |
90min: FPJ-B-20X 2 60min: FPJ-A-15X 2 30min: FPJ-A-15X 2 Or Customized |
| Warranty | 2 years |
| Package | Inside Bubble Bags with Outside Wooden Frame |
| Delivery Time | 35Days After Payment Received |
Features
| Item | Double Swing Silver 201/304 Stainless Steel Fire Twin Doors |
| Top Quality and Eco-friendly& Healthy Infilling Material |
All of our fireproof perlite boards must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains457.3kg/m3, which are both great higher than the standard of 420kg/m3. |
| High Anti-Explosion Performance | It remains high yield strength and creep strength even at higher than 900℃,therefore it can effectively avoid explosion in case of fire. |
| High Anti-Corrosion Performance | Thanks to the nickel and chromium elements in 201/304 stainless steel, oxidation process inside the fire door can be so obtuse as to non-oxidation. Man can even say that in dry circumstances its service life can be unlimited. |
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
