90 min 304 Stainless Steel Fire Rated Doors with Vision Panel For Industrial Use

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: UL, CCC Model Number: ZW-GM02(B)

Detail Information

Material: 304 Stainless Steel Fire Rating: 90 Min
Thickness Of Steel Panel: 55 Mm Thickness Of Steel Sheet For Door Leaf: 0.8/1.0 Mm
Thickness Of Steel Sheet For Door Frame: 1.2/1.5 Mm Frame Depth: 112/120 Mm
Certificate: UL/ BS/ CCC Glass: Double Glazing Composite Fireproof Glass
Accessory: Fire Lock, Hinges, Bolts Etc. Weight: 20-28 Kg/m2
High Light:

metal fire door


metal fire escape doors

Product Description

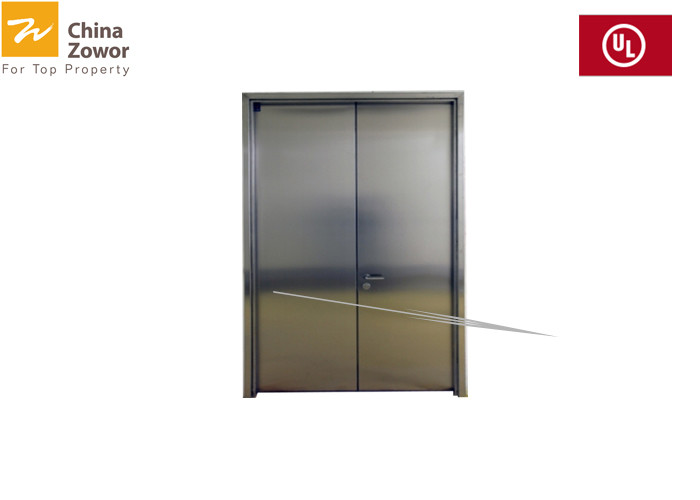

90 min 304 Stainless Steel Fire Rated Doors with Vision Panel For Industrial Use

Stainless Steel Fireproof Door


Product Introduction


Zhongwo stainless steel fire door including flat stainless steel fire door and glass stainless steel fire door.


Zhongwo stainless steel fire door is made of 201 / 304 / non-fingerprint stainless steel material and is filled with anti-fire perlite cotton plate. Compared with ordinary steel fire door, it is more beautiful, high-grade and stable in performance. Such material doesn’t have weaknesses such as being non-moisture proof and paint removing due to improper maintenance. And this type of fire door can be customized according to special requirements of customers. Each fire door is carefully designed by our professional designer, highlighting its natural character!


Sound insulation and transparency: it can effectively weaken all kinds of noise interference, meanwhile basically maintain the transparency of the original glass, with good lighting.


Excellent heat insulation performance: Fire-resistant adhesive is non-combustible material, and it will gradually foam, expand to the condition of carbonation when heated , therefore it can reduce heat radiation and heat transfer effectively.


High weathering: 24mm thick composite fire glass endows the stainless steel fire door with good UV resistance performance.



Product Name Single Swing 304 Stainless Steel Fire Door with Vision Panel
Fire Rating 30 min/60 min/ 90min
Certificate CCC, ISO9001:2008
Material of Door Leaf 304 Stainless Steel
Material of Door Frame 304 Stainless Steel
Thickness of Steel Sheet of Door Leaf 0.8 mm; 1.0 mm
Thickness of Steel Sheet of Door Frame 1.2 mm; 1.5 mm
Thickness of Door Leaf

90min: 55 mm

60min: 45 mm

30min:40 mm

Frame Depth

90min: 120 mm

60min: 112 mm

30min: 90 mm

Size Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request.
Open Style Swing Open
Infilling Material

90min: 53 mm Fireproof Perlite Board(400±40kg/m3)

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper

Surface Treatment Finished
Weight 20-28Kg/m2

Standard:24mmX 200mmX 900mm;

32X 200mmX 900mm

Or Customized As Request

Fireproof Seal Strip

90min: FPJ-B-20X 2

60min: FPJ-A-15X 2

30min: FPJ-A-15X 2

Or Customized

Warranty 2 years
Package Inside Bubble Bags with Outside Wooden Frame
Delivery Time 35Days After Payment Received
90 min 304 Stainless Steel Fire Rated Doors with Vision Panel For Industrial Use 0

Why Choose Us?


1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

6. More than 20 years experience in fire door industry.


90 min 304 Stainless Steel Fire Rated Doors with Vision Panel For Industrial Use 1
