Single Swing Right Hand 40 mm Steel Panel FD30 Fire Door in Steel Frame

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM02(T)

Detail Information

Material: Galvanized Steel Infilling: Fireproof Perlite Board
Frame Depth: 90 Mm Thickness Of Steel Sheet For Door Frame: 1.2 Mm
Thickness Of Steel Sheet For Door Leaf: 0.8 Mm Opening Direction: Outward
Opening Force: 50 N Opening Degree: 90-120 Degrees
Highest Temperature Rise: 69.3 ℃ Size: Customized Size
High Light:

30 minute fire door

,

half hour fire door

Product Description

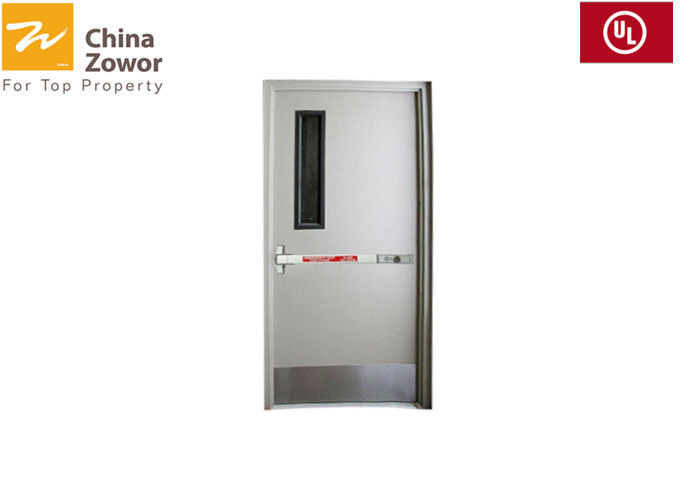

FD30 Fire Door in Steel Frame




Product Descripton

All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation. Generally our FD30 steel fire doors sets are all complete fire doors. We can also provide individually the door frame or door leaf.Door leaf is filled with 38 mm thick fireproof perlite board with density of 300±30 kg/m3And the door leaf panel is covered on both sides with 0.8 mm thick galvanized steel sheet. Finishes of the panel can be powder coating, heat transfer printing, ready for painting and others as request. Besides, every door of us can be made to your specific requirement for sizes, colors, applications etc.​

Accessory

We can provide you different kinds of accessories including fire door closers, fire door holders and fire locks, hinges and handles, latches of top quality. There are many brands from China and International countries for your choice, for example Kinlong, Hardrock and Dorma etc.

Specification


Product Name FD30 Fire Door
Fire Rating 30 min
Weight 20-25Kg/m2
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf ≧0.8 mm
Thickness of Steel Sheet of Door Frame ≧1.2 mm
Thickness of Door Leaf 40 mm
Frame Depth 90 mm
Opening Degree 90°-130°
Open Style Swing Open, Left Handed, Right Handed
Infilling Material 30min: 38 mm Fireproof Perlite Board(300±30kg/m3)
Surface Treatment

Powder Coating;
Heat Transfer Printing

Color

Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request
Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Fireproof Seal Strip FPJ-A-15X 2
Package Inside Bubble Bags + Strong Carton + Wooden Frame
Delivery Time 35 Days After Payment Received
Application

Cable Well, Tube Wells, Exhaust Well,
Garbage Wells



Single Swing Right Hand 40 mm Steel Panel FD30 Fire Door in Steel Frame 0




Packaging&Delivery
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Why Choose Us?

1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
