Stainless Steel Fire Rated Roller Shutters

Product Details:
Place of Origin: CHINA
Brand Name: ZHONGWO
Certification: 3C, ISO9001:2008
Model Number: ZW-JL02
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Inside Bubble Bags+ Strong Carton+Wooden Frame
Delivery Time: 35 Days After Payment Received
Payment Terms: western union, moneygram,cash, l/c, t/t
Supply Ability: 600 Sets per Day

Detail Information

Material: Galvanized Steel Strip Fire Resistance Duration:: 3H
Tolerance Of Curtain Length: 0(Standard:±2.0mm) Electric Opening And Closing Speed: 5.7m/min(Standard:2-7.5m/min)
Thickness Of Curtain Profile: 15mm Wind Pressure Resistance: 784Pa
High Light:

Fire Rated Roller Shutters

,

Insulated Fire Shutter

Product Description

Steel Fireproof Roller Shutter Shopping Malls Warehouse Rolling Steel Fire Door Fire Shutters

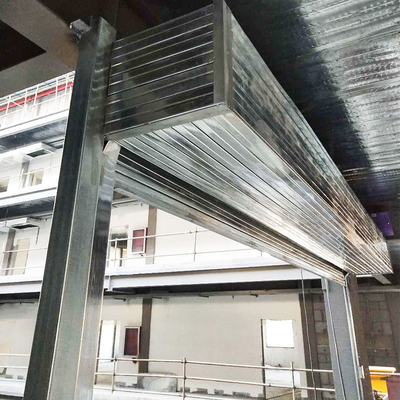

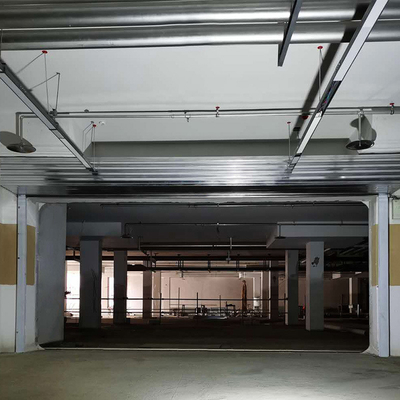

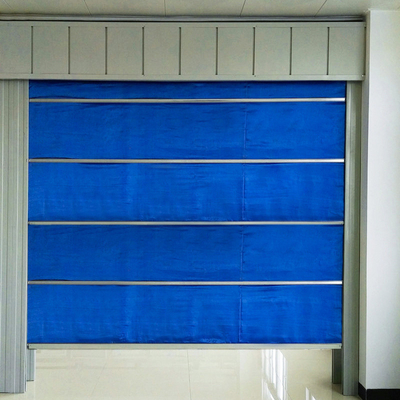

Stainless Steel Fire Rated Roller Shutters

Stainless Steel Fire Rated Roller Shutters 0Stainless Steel Fire Rated Roller Shutters 1

The rolling steel fire door is a kind of fire proof and heat-insulation device suitable for buildings with large openings. The scroll of the roller shutter is hidden designed with characteristics of reasonable and compact structure, flat appearance, novel shape, strong rigidity and so on.

Elements of Zhongwo rolling steel fire door such as curtain plate, guide rail, seat plate, crossbar, door body are all made of steel material. And its door winder and control box can also meet the requirements of fire -resistance integrity.



Technical Performance:

Fire Resistance Duration: Class F3; 3h

Tolerance of Curtain Length: 0(Standard:±2.0mm)

Tolerance of Curtain Width: +0.3(Standard:±1.0mm)

Tolerance of Curtain Thickness: +0.3(Standard:±1.0mm)

Tolerance of Rail Slot Depth: +0.4(Standard:±2.0mm)

Tolerance of Rail Slot Width: +0.6(Standard:±2.0mm)

Wind Pressure Resistance:784Pa

Noise: 79dB(Standard:≦85dB)

Electric Opening And Closing Speed: 5.7m/min(Standard:2-7.5m/min)

Self-weight Drop Speed: 5.8m/min(Standard:≦9.5m/min)

Material of Curtain Plate: 0.8mm Galvanized Steel Strip

Thickness of Curtain Profile: 15mm

Material of Guide Rail: 1.2mm Galvanized Steel Strip

Material of Seat Plate: L40×4mm Angle Steel

Length of Reel: 3400mm

Material of Reel: Φ140mm Welded Pipe



Scope of Application:

Zhongwo steel fire roller shutter is widely used in public places such as large supermarket, shopping malls, large material market, exhibition halls, factories and big stores, warehouses etc.
