Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type

China Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type supplier
Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type supplier Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type supplier Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type supplier

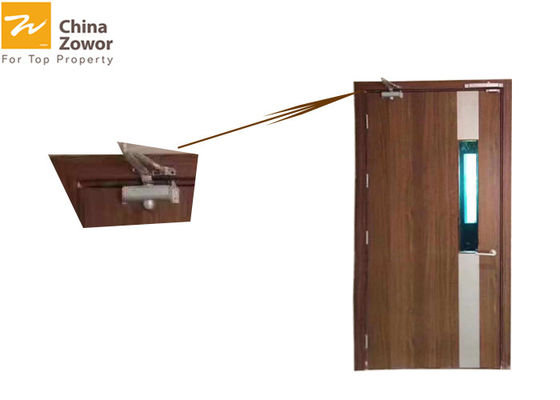

Large Image :  Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type

Product Details:

Place of Origin: CHINA
Brand Name: ZHONGWO
Certification: ISO9001:2008, CCC, BS, WHI
Model Number: ZW-SM07

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inside Bubble Bags+ Strong Carton+Wooden Pallet
Delivery Time: 45 Days After Payment Received
Payment Terms: western union, moneygram,cash, l/c, t/t
Supply Ability: 600 Sets per Day
Contact Now
Detailed Product Description
Material: Galvanized Steel Fire Rating: 30/60/90/120 Min
Finish: Wood Grain Thickness Of Door Leaf: 40/45mm
Thickness Of Steel Sheet For Door Leaf: 20-18-16 Ga. Thickness Of Steel Sheet For Door Frame: 18-16-14 Ga.
Infilling: Perlite Board; Honeycomb Paper, Mineral Core Glass: UL Listed Fireproof Glass
Opening Force: 66-68 N Opening Type: Swing Open

Fire Rated Safety Steel Door



Fire doors are one of the measures for fire separation of buildings. They are usually required to be separated from smoke and fire at the entrance of the firewall, stairs, or the opening of the pipe well. Fire doors play an important role in preventing the spread and spread of smoke and fire and reducing losses.

Product Description

Zhongwo steel fire doors are all tested in accordance with American or British Standard such as UL10(b) and UL10(c), ASTM E2074, NFPA 252, NFPA 80 and BS476:22 & EN1634:1. We can provide you with UL/WHI certificate or BS and EN certificates for various sizes and fire ratings.

Zhongwo steel fire doors can be used in high-rise buildings, metro railway stations, telecom centers, power plants, cellular network stations, garment processing units, shopping malls, industrial plants, multiplexes, hotels, auditoriums, software parks, restaurants, etc.



Product Advantage



Item Zhongwo Steel Fire Rated Door
Top Quality and Eco-friendly& Healthy Infilling Material

All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.

Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains457.3kg/m3, which are both great higher than the standard of 420kg/m3.

Top Appearance Quality Surface adopts technology without welding spots, so that to get smooth appearance.
Top Fire Insulation Performance Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. And the highest temperature point on door frame reaches 140.8℃, also much lower than the standard of not beyond 360℃.
High Fire Integrity Performance When fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds.
Top Flexibility All of our steel fire doors can smoothly open and close, definitely without the problem of jam or so.
Small Door Leaf Opening Force Door leaf opening force of our rosewood steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized Products Nearly all of our steel fire doors can be customized as your request.
Top Quality Fireproof Glass Our standard fireproof glass is Class A composite fireproof glass, which can fulfill the demand for fire protection, high transparency, scratch resistance and sound insulation all in one.



Specification



Product Name Zhongwo Fire Rated Steel Doors
Fire Rating 20/30/60/90/150/180mins
Standard

NFPA,ANSI/UL 10B,UL10C

BS476-22, EN1634-1:2008

Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame 18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf

US Standard Door: 40/45 mm

BS Standard Door: 45/50/55/64 mm

Frame Depth 120/130/160 mm
Weight 25-35Kg/㎡
Size

Single Door: 3’X7’; 4’X8’

Double Door: 6’X7’; 8’X8’

Or customized

Open Style Swing Open
Infilling Material

Standard: Fireproof Perlite Board

Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam

Surface Treatment Prime Paint(UV/PU), Powder Coating, Wood Grain
Color Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
Glass

Standard: American or British Standard Tested Clear or Wired Glass

Or Customized As Request

Fireproof Seal Strip

FPJ-B-20X 2

FPJ-A-15X 2

Or Customized

Warranty 2 years
Package PE Paper+Double Layer Strong Carton or wooden pallet
Delivery Time 45Days After Payment Received





Walnut Wood Grain Finish Fire Safety Door 16/18 Gal Steel Sheet Swing Opening Type





Installation



We also have self-operated professional instllation team ready for your choice. Every member of the team must be trained under strict system in Zhongwo. Only most skillful ones of them can be sent overseas to help you with the installation.

Besides, the installation fees are extreamly low in comparision with other companys.



Package



Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.

Standard: PE Paper+Double Layer Strong Carton or wooden pallet

We can also pack doors and frames as your request, just exchange the details with us.
