Steel 120 Minute Fire Rated Doors With UL Listed Prime Paint Fireproof Steel Door
Contact Person : Zowor
Phone Number : +86-13393731249
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Inside Bubble Bags+ Strong Carton+Wooden Pallet||Delivery Time :||45 Days After Payment Received|
|Payment Terms :||western union, moneygram,cash, l/c, t/t||Supply Ability :||600 Sets per Day|
|Place of Origin:||CHINA||Brand Name:||ZHONGWO|
|Certification:||BS， WHI， UL, CCC||Model Number:||ZW-SM07|
|Material:||Galvanized Steel||Fire Rating:||30/60/90/120 Min|
|Finish:||Wood Grain, Powder Coating, Prime Paint||Thickness Of Door Leaf:||40/45mm|
|Thickness Of Steel Sheet For Door Leaf:||20-18-16 Ga.||Thickness Of Steel Sheet For Door Frame:||18-16-14 Ga.|
|Infilling:||Perlite Board; Honeycomb Paper, Mineral Core||Glass:||UL Listed Fireproof Glass|
|Opening Force:||66-68 N||Opening Type:||Swing Open|
fire proof door,
fire protection door
Zhongwo steel insulated fire door consists of various fire doors of different colors, sizes, fire ratings and surface treatment. Fire rating can be divided into different kinds: 30mins, 60mins, 90mins, 120mins and up to 180mins. As far as the colors and sizes are concerned, all of steel fire doors can be customized as your request. And thanks to different surface treatment methods our fire doors are not only beautiful and brilliant in appearance, they also are provided with many practical advantages such as high anti-corrosion performance, top anti-oxidation performance, best insulation performance and first-class integrity performance into various decorative styles. Thus, Zhongwo single swing flush panel steel insulated fire door can not only be used in traditionally thought industrial and general grade civil buildings, but also in many high-end commercial buildings such as star hotels, high-end office buildings and luxury shopping malls and so on.
|Product Name||Zhongwo Fire Rated Steel Doors|
|Material of Door Leaf||Galvanized Steel Sheet|
|Material of Door Frame||Galvanized Steel Sheet|
|Thickness of Steel Sheet of Door Leaf||20-18-16 Ga. (1.0/1.2/1.6 mm)|
|Thickness of Steel Sheet of Door Frame||18-16-14 Ga. (1.2/1.6/2.0mm)|
|Thickness of Door Leaf||
US Standard Door: 40/45 mm
BS Standard Door: 45/50/55/64 mm
|Frame Depth||120/130/160 mm|
Single Door: 3’X7’; 4’X8’
Double Door: 6’X7’; 8’X8’
|Open Style||Swing Open|
Standard: Fireproof Perlite Board
Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam
|Surface Treatment||Prime Paint(UV/PU), Powder Coating, Wood Grain|
|Color||Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request|
Standard: American or British Standard Tested Clear or Wired Glass
Or Customized As Request
|Fireproof Seal Strip||
|Package||PE Paper+Double Layer Strong Carton or wooden pallet|
|Delivery Time||45Days After Payment Received|

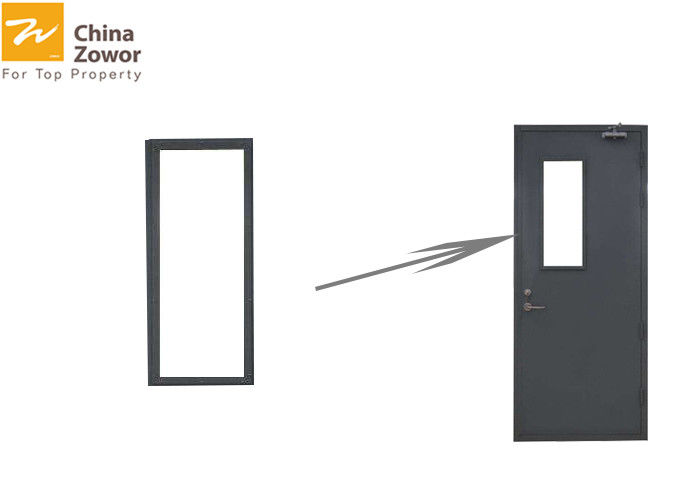

A. Reinforcement channel is provided.
B. Glass frame and glazing bead is steel.
C. Glass is UL listed glazing material.
D. Maximum allowable glass area:2 Hours, 100 sq. in. Per door leaf (Fire lite)
Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.
Standard: PE Paper+Double Layer Strong Carton or wooden pallet
We can also pack doors and frames as your request, just exchange the details with us.
