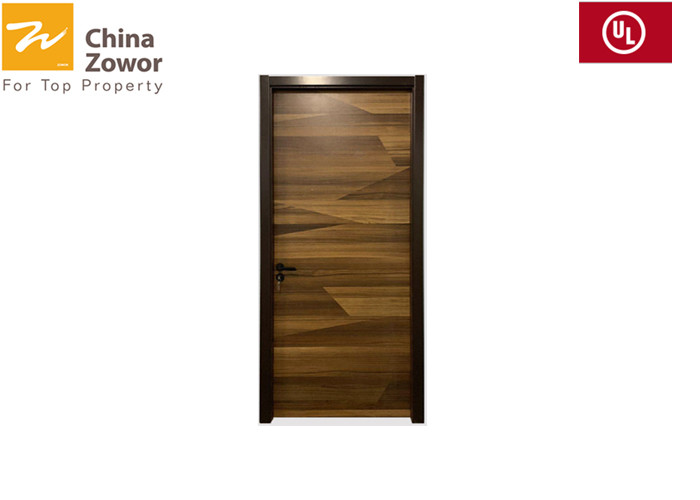

Single Swing Right Handed Solid Wood Internal Fire Doors 45mm Thick Perlite Board Infilling

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 45 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: Intertek,BS,CCC Model Number: ZW-GM02(T)

Detail Information

Material: Plywood Infilling: Fireproof Perlite Board
Thickness Of Door Leaf: 45 Mm Frame Depth: 112/120 Mm
Thickness Of Steel Sheet For Door Frame: 1.2 Mm Opening Force: 66 N
Opening Degree: 90-180 Degrees Fire Rating: 30/60/90 Mins
Standard: BS476:22/ EN1634:1
High Light:

45 minute fire rated wood door


timber fire doors

Product Description

 Single Swing Right Handed Solid Wood Internal Fire Doors 45mm Thick Perlite Board Infilling

Wood Fire Door with Steel Frame


Zhongwo fire door is a factory dedicated to producing and selling all kinds of fire rated doors such as steel fire door, wooden fire door, wooden fire door with steel frame and stainless steel fire door with different kinds of fire ratings varing from 30mins via 60mins to 90 and even 120mins.


Steel wooden fire doors are divided into two kinds, namely fire doors consisting of wood door leaf and steel frame and fire doors consisting of steel door leaf and wooden frames. By us we mean the forner one.

Product Advantage
1. T-type door leaf structure imported from Germany
2. Multi-performance in one: fireproof performance, Sound insulation, Heat insulation, Energy Saving

3. Hardware: Dorma fire lock from Germany, Quadruple hinges from Germany

Main technical performance:
Product Name Wooden Fire Door With Steel Frame
Fire Rating 30 min/60 min/ 90min/180 min
Certificate CCC, ISO9001:2008; UL; BS
Material of Door Leaf Galvanized Steel Sheet
Finish Primer Painting, Laminating, Wood Veneer, Baking Paint
Infilling Fireproof Perlite Board, Honeycomb Paper
Thickness of Door Leaf

60min: 45 mm

30min:40 mm

Frame Depth

60min: 112 mm

30min: 90 mm

Open Style Swing Open, Left Handed, Right Handed
Color RAL Color as Customized

Single Open: 24mmX 350mmX 600mm

Double Open: 32mmX 350mmX 600mm

Or customized As Request

Fireproof Seal Strip

60min: FPJ-A-15X 2

30min: FPJ-A-15X 2

Or Customized

Hardware High Quality Fire Lock, Fire Bolt, Fire Hinge, Fire Sequencer, Fir Door Closer and Others as Request
Warranty 2 years

Inside Bubble Bags with Strong Carton

Wooden Pallet

Delivery Time 45Days After Payment Received

Door Frame:


Frame Depth: 90/ 112/ 120mm

Thickness of Steel Sheet:1.2mm

Structure: Galvanized Steel Sheet+ Reinforcing Steel+Fireproof Perlite Board

Thickness of Reinforcing Steel: 3 mm

Density of Fireproof Perlite: 300±30kg/m3 ; 400±40kg/m3


Single Swing Right Handed Solid Wood Internal Fire Doors 45mm Thick Perlite Board Infilling 0




Generally we provide UL listed hardware like fire door closer, fire hinges, fire locks. More options such as panic bars, electric-magnetic door holders and fire door selectors are also available.

Remarks: If you don’t want ironmongery from us but only need us to punch hardware insert holes, please send us the specification and drawings of hardware you need, it will be best if you send us delivery samples.




Title Step 1 Step 2 Step 3 Step 4
Door PEP Paper around the door Foam Channel Around 4 Edges and Corners Foam Board on both sides on PEP Paper

Strong Carton


Frame PEP Paper around the frame Tape Winding Strong Carton
Besides, we also provide wooden pallet package as per your request.



Why Choose Us?


1. All of our fire doors are in top quality and at competitive prices.

2. Free pre-sales consult on any questions about fire doors.

3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

4. All fire doors can be customized as your request.

5. Good after-sale service.

6. More than 20 years experience in fire door industry.

Single Swing Right Handed Solid Wood Internal Fire Doors 45mm Thick Perlite Board Infilling 1
