Gray Color Double Swing Fireproof Steel Door With Vision Panel For Commercial Building

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-SM08

Detail Information

Material: Galvanized Steel Fire Rating: 60/ 90 Min
Thickness Of Door Leaf: 45/55 Mm Frame Depth: 112/120 Mm
Thickness Of Steel Sheet For Door Leaf: 0.8/1.0 Mm Thickness Of Steel Sheet For Door Frame: 1.2/ 1.5 Mm
Surface Treatment: Powder Coated & Heat Transfer Printing Opening Degree: 90-180 Degrees
Glass Type: Double Glazing Composite Fireproof Glass Accessories: International & Chinese Brand
High Light:

fire proof door


fire protection door

Product Description

Zhongwo UL Steel Fire Door



Gray Color Double Swing Fireproof Steel Door With Vision Panel For Commercial Building




Steel fire doors can be used in various places or circumstances. But which fire ratings and circumstances match each other?

Well, for houses, flat rooms and hotel rooms we usually recommend 30mins steel fire doors. For factories we install 45mins or 60mins UL steel fire doors.For hospitals we use 90mins steel fire doors. And for industrial facility it should be 90 or 120mins steel fire doors. Top rating 180mins fire doors are normally designed for circumstances with high explosion risk such as oil plant, oil storage room and so on.




Door Sash Material: galvanized steel, 304 stainless steel;

Door Frame Material: galvanized steel, 304 stainless steel;

Thickness of Steel Panel For Door: 0.8mm,1.0mm,1.2mm

Thickness of Steel Panel For Frame: It matches the thickness of steel panel for door like the following: 0.8mm--1.2mm;1.0mm--1.5mm;1.2mm--2.0mm

Door Filler: There are different options for you, standard filler by us is fireproof perlite board or magnesium oxide board. Otherwise, we can also customize the fillers to be mineral wool, honeycomb paper which has been specially treated. Moreover, polyethylene foam is also one choice for you.

Door Thickness: standard thickness of door is 45mm, namely 13/4’’.

Door Dimension: Max size is 3’ wide by 7’ high for single door(W915mm* H2134mm), for double doors it should be 8’ wide by 8’ high(W2438mm*H2438mm ).Note: The sizes listed above are only for the door leaf and do not include the frame or door clearance.

Frame Depth: 120mm,130mm,160mm

Frame Types: Knock-down frame, Welded frame

Finish: We have three kinds of surface treatments for you: powder coating, wood grain, stainless steel.

Various colors for each finish, we have our own colors system and also can customized colors in RAL systems for you.

Weight: Generally the door weight is around 35Kg per square meter without hardware. It may differs from each other when the door area changes. Detailed weight please exchange with our salesman.


Vision Panels

Title Description Fire Rating Certification
Insulated Fireproof Glass 200*600*32 mm Up to 3 hours CCC
Glass Ceramic 203.2*608.6*5 mm Up to 3 hours UL
Boron Glass 203.2*608.6*6 mm Up to 3 hours UL

Attention: In circumstances where fire doors with fire rating longer than 2 hours, we do not suggest doors with glass inserts.



With her headquarter in Zhengzhou, which is only 50km far away from Shaolin temple, Zhongwo fire door provide great products scope from wood fire doors, steel fire doors, fire rated windows to fireproof roller shutters.

Qualifications for Zhongwo as a corporation there are ISO9001, ISO14001,FSC and so on, as far as the products are concerned there are UL, Intertek BS and CCC to be included.

Zhongwo UL steel fire doors are tested directly at UL(China) in accordance with standards of NFPA252, UL10(b), UL10(c) and CAN/ ULC S104. Moreover, fire ratings of Zhongwo UL steel fire doors could be divided into 20mins, 30mins, 45mins, 60mins,90mins and 120mins. Also we are dealing with certification of 180mins.

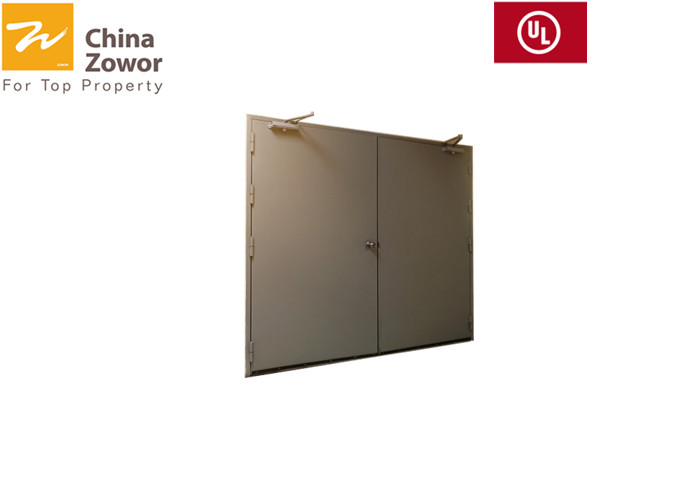

Gray Color Double Swing Fireproof Steel Door With Vision Panel For Commercial Building 0

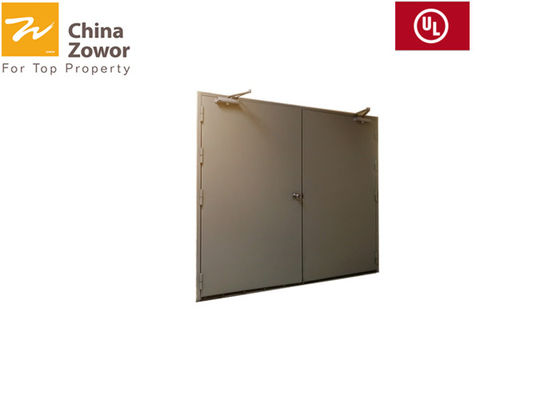

Gray Color Double Swing Fireproof Steel Door With Vision Panel For Commercial Building 1




Transportation by us is of different kinds and you can choose from ships, trucks, railways and aircraft.

Door to door delivery is also at your service.
