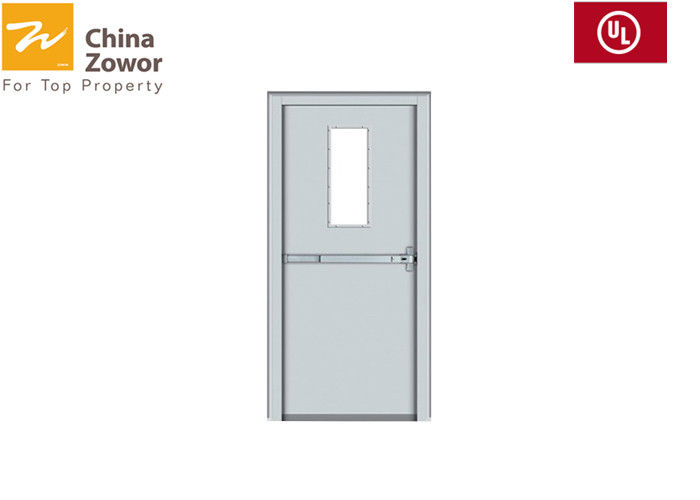

115mm Frame Powder Cotaing UL 1 Hour Fire Rated Door

Minimum Order Quantity : 5 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton Delivery Time : 30 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: UL; ISO9001:2008; Model Number: ZW-ULGFMZP06

Detail Information

Filling: Honeycomb Paper, Fire Proof Material: Galvanized Steel
Color: Customize Finish: Powder Cotaing
Certificate: UL
High Light:

1 Hour Fire Rated Door


Powder Cotaing Fire Rated Door


115mm Frame UL Fire Door

Product Description

1 Hour Fire Rated Door With UL Certificate 1200mm X 2400mm Size And Other Size Customizeable


1 Hour Steel Fire Rated Door




• Only registered / tested fire door hardware should be used.
• Fire-resistant doors with glass openings require registered glass, steel frame and window panes.
• All assembly configurations such as transum panels, vision panels, frame material, metal thickness, leaf structure, core type, door set type (single, double or double exit) are test certificates or testing agencies. Global evaluation reports are issued by.





These doors can be used in high-rise buildings, metro railway stations, telecom centers, power plants, cellular network stations, garment processing units, shopping malls, industrial plants, multiplexes, hotels, auditoriums, software parks, restaurants, etc. Hörmann doors and frames are designed to perform and in the most demanding environment.

115mm Frame Powder Cotaing UL 1 Hour Fire Rated Door 0


Product Name 1 hour Fire Rated Steel Doors
Fire Rating 60/90 mins
Standard UL
Material of Door Leaf Galvanized Steel Sheet 1.0mm
Material of Door Frame Galvanized Steel Sheet 1.5mm
Thickness of Steel Sheet of Door Leaf 20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame 18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf US Standard Door: 45 mm
Frame Depth 115 mm
Weight 25-35Kg/m2
Size(Overall Frame Size)

Single Door: Max. 1200 X 2400 mm

Double Door: 2100 X 2400 mm

Or customized

Open Style Swing Open
Infilling Material

Standard: Fireproof Perlite Board; Magnesium Oxide Board

Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam

Package Carton



115mm Frame Powder Cotaing UL 1 Hour Fire Rated Door 1
