Steel FD60 Fire Door With Fireproof Glass Color Can Be Customized

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : PE Paper+Double Layer Strong Carton or wooden pallet Delivery Time : 45 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-CBM04

Detail Information

Material: Galvanized Steel Fire Rating: 30/60/90/120/150 Min
Thickness Of Door Leaf: 45/50/55/60/72 Mm Thickness Of Door Frame: 120/130/160 Mm
Face Sheet Of Sash: 1.0/1.2/1.6 Mm Face Sheet Of Frame: 1.5/1.6/2.0 Mm
Infilling: Fireproof Perlite Board Finish: Powder Coated, Primer Paint
High Light:

Steel FD60 Fire Door

,

Galvanized Steel FD60 Fire Door

,

Galvanized Steel fd60s fire door

Product Description

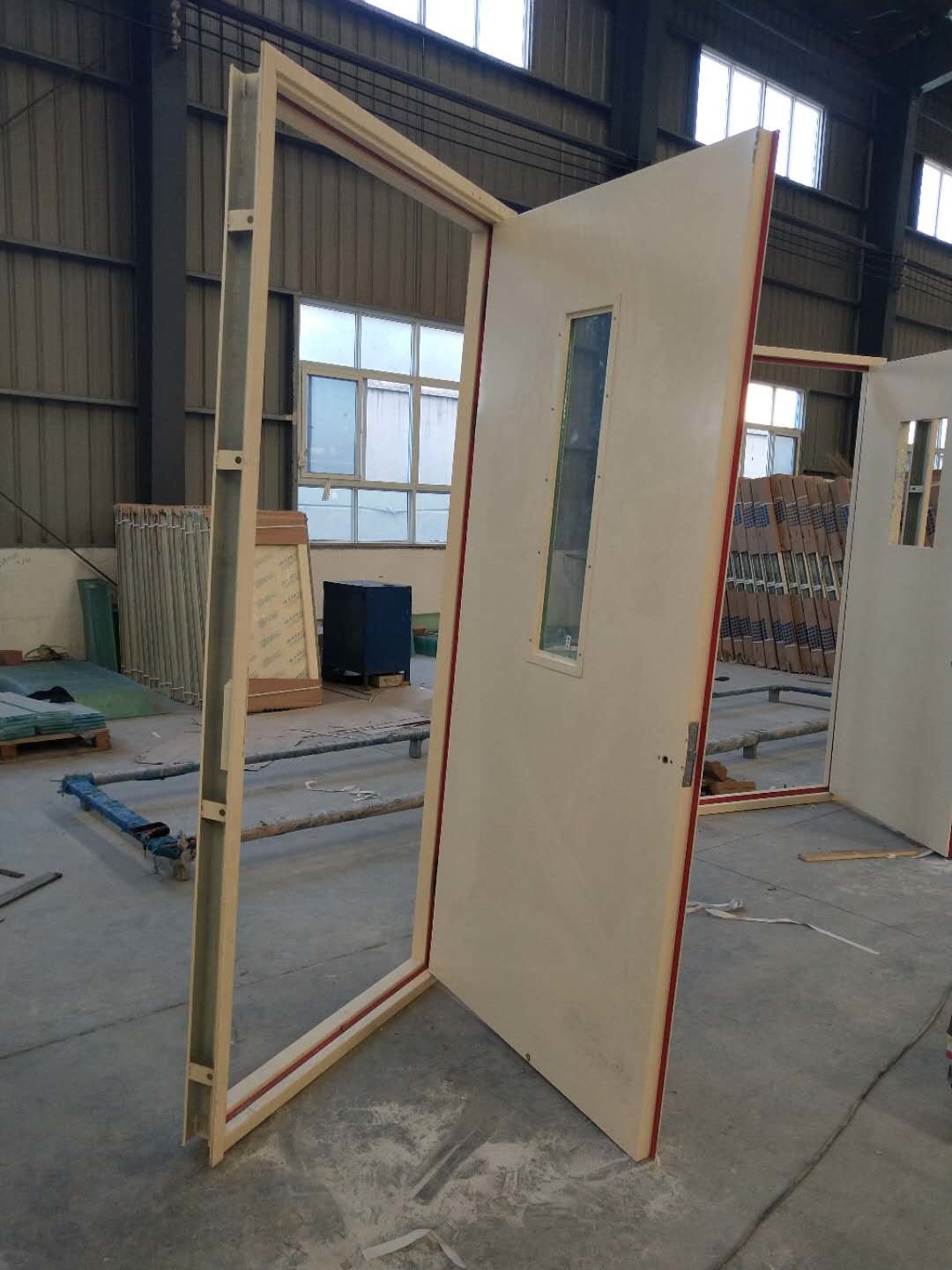

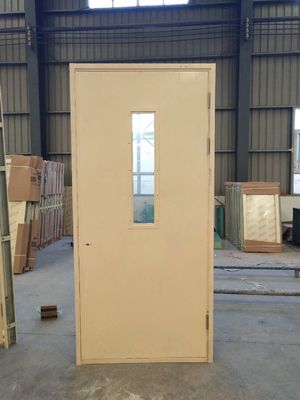

Steel FD60 fire door with fireproof glass color can be customized

Self Closing Fire Door



Zhongwo single open powder coating steel insulated fire door with vertical vision panel consists of various fire doors of different colors, sizes, fire ratings and surface treatment. And the sizes and fire ratings of vertical vision panel match individually the sizes and fire ratings of the entire doors. Fire rating of doors can be divided into three kinds: 30mins, 60mins and 90mins, so as the vertical vision panels. We not only provide you with fire doors with vertical vision panels of standard sizes (1000X 2300, 700X 2300, 700X 2100, 700X 2000) and popular colors on our color swatch (cold gray white, dark gray, milky white, matte orange and beige etc.), we can also customize fire doors for you 100% as your request.



Specification



Product Name Zhongwo Fire Rated Steel Doors
Fire Rating 20/30/60/90/150/180mins
Standard

NFPA,ANSI/UL 10B,UL10C

BS476-22, EN1634-1:2008

Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame 18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf

US Standard Door: 40/45 mm

BS Standard Door: 45/50/55/64 mm

Frame Depth 120/130/160 mm
Weight 25-35Kg/㎡
Size

Single Door: 3’X7’; 4’X8’

Double Door: 6’X7’; 8’X8’

Or customized

Open Style Swing Open
Infilling Material

Standard: Fireproof Perlite Board

Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam

Surface Treatment Prime Paint(UV/PU), Powder Coating, Wood Grain
Color Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
Glass

Standard: American or British Standard Tested Clear or Wired Glass

Or Customized As Request

Fireproof Seal Strip

FPJ-B-20X 2

FPJ-A-15X 2

Or Customized

Warranty 2 years
Package PE Paper+Double Layer Strong Carton or wooden pallet
Delivery Time 45Days After Payment Received









Hardware



As standard we equip every door with galvanized steel hinges, locksets and high quality door closers. We can also send you panic push bar, fire bolts, magnetic door stoppers or other accessories as your request. Melting temperature of hardware installed in doors should be no less than 950℃.

Besides, we also have stainless steel hardware when you want.





Reinforcements



· Top and bottom of doors shall be reinforced with continuous 16-gauge steel channels, spot welded to both sides of doors.

· Hinge reinforcements shall be 11-gauge steel angle, 12" long

· Cylindrical lock reinforcement shall be 16-gauge with 11-gauge thread depth. Other lock and closer reinforcements shall be 12-gauge.

· Doors shall be reinforced for all surface type hardware. Drilling and tapping of surface hardware to be done in the field by the erector.

· Edges of door shall be continuously seam welded, ground, and filled to ensure a smooth finish.







Glass



A. Reinforcement channel is provided.

B. Glass frame and glazing bead is steel.

C. Glass is UL listed glazing material.

D. Maximum allowable glass area:2 Hours, 100 sq. in. Per door leaf (Fire lite)





Package



Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.

Standard: PE Paper+Double Layer Strong Carton or wooden pallet

We can also pack doors and frames as your request, just exchange the details with us.



Steel FD60 Fire Door With Fireproof Glass Color Can Be Customized 0
