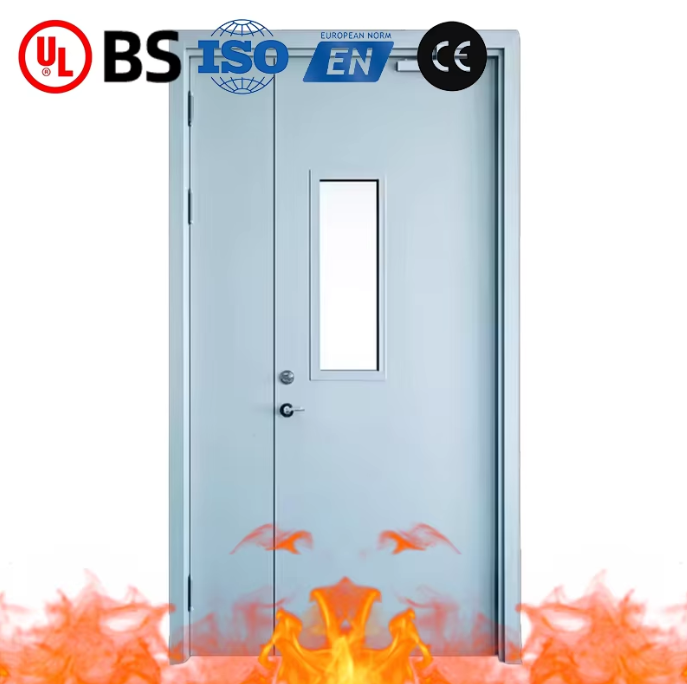

Project Grade 90min Fire Rated Steel Door Commercial Emergency Exit Security Doors for School Hospital Bulk Supply
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags+ Strong Carton+Wooden Frame | Delivery Time : | 45 Days After Payment Received |
| Payment Terms : | western union, ,cash, l/c, t/t | Supply Ability : | 600 Sets per Day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC |
|
Detail Information |
|||
| Certificate: | BS, WHI | Frame Depth: | 112/120 Mm |
|---|---|---|---|
| Thickness Of Door Leaf: | 54 Mm | Thickness Of Steel Sheet For Door Leaf: | 0.8/1.0 Mm |
| Thickness Of Steel Sheet For Door Frame: | 1.2 /1.5 Mm | Infilling: | Perlite Board, Rockwool, Honeycomb Paper |
| Weight: | 30 Kg/m2 | Tem. Rise: | 180 Degrees |
| Opening Degree: | 90-180 Degrees | Color: | Customized |
Product Description
Product Description
Fire doors are one of the fireproof separation facilities of buildings. They are usually used on firewalls, stairwell entrances or pipe openings, and play an important role in reducing fire damage.
In the high-rise civil building design fire protection standard, the fire doors are classified into Grade A, B and C, and the fire resistance rating is specified. Grade A doors are not less than 1.5 hours, Grade B doors are not less than 1.0 hours, Grade C must not be less than 0.5 hours.
The wooden fire doors are divided into two series of full and half glass, as well as single and double leaves.
Main technical performance
1. Fire Resistance Rating: 30/60/90/120/180mins
2. Sound Insulation: It has good sound insulation effect, and the sound insulation index of Grade C products is RW ≥ 23dB.
3. Decorative: Electrostatic powder spray on surface, beautiful and durable, available in a variety of colors to choose.
4. Equipped with high-performance fire-resistant hardware accessories and locks, the veneer color can be selected according to customer demand: red cherry, black walnut, Sapele, etc.
Certification
Zhongwo FD60 single leaf steel insulated fire doors with vision panel all passed the 60min fire test according to BS476-22 and EN1634-1, in other words, we can provide you all certificates or fire test reports you want.
Color Options
Specification
| Product Name | 60 min Single Leaf Steel Insulated Fire Door With Vision Panel |
| Certificate | CCC, ISO9001:2008;BS |
| Thickness of Door Leaf | 45/54 mm |
| Frame Depth | 112/120 mm |
| Open Style | Swing Open, Left Handed, Right Handed |
| Infilling Material | 43 mm Fireproof Perlite Board(300±30kg/m3) |
| Surface Treatment | Powder Coating; Heat Transfer Printing; Copper Drawing Process |
| Color | Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request |
| Glass | Class A Fully Insulated Double Glazing Composite Fireproof Glass; |
| Astragal | W17mm X T2.4 mm |
| Fireproof Seal Strip | FPJ-A-15X 2; FPJ-A-12X 2 |
| Package | Inside Bubble Bags+ Strong Carton+Wooden Frame |
| Delivery Time | 35Days After Payment Received |
Product Advantage
| Item | 60 min Single Leaf Steel Insulated Fire Door With Vision Panel |
| Eco-friendly& Healthy Infilling Material | All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. |
| Little Smoke Leakage | We introduce a kind of astragal to cover the lap joint between two leaves so as to reduce the smoke leakage to utmost extent. |
| Beautiful Appearance | The surface treatment of powder coating makes the different colors choices possible, thus increase the ability to match almost any kind of decor. |
| Small Door Leaf Opening Force | Door leaf opening force of our rosewood steel fire door is no more than 69N, which is much smaller than 80N according to GB12955-2008. |
| Long Service Life | Powder coating process increases highly anti-corrosion and anti-damp performance of fire doors, thus longer service life. |
| Customized Products | Nearly all of our steel fire doors can be customized as your request. |
Production Process
Door Furniture
Generally FD60 single leaf fire door with vision panel consist of 4 pairs of fire hinges, 1 fire door closers, 1 fire lock with latch and 1 fire bolt as door furniture. We have different brands from China and international countries for your choice, for example Kinlong, Hardrock and Dorma etc. And we can also install accessories onto door totally as your request.
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
