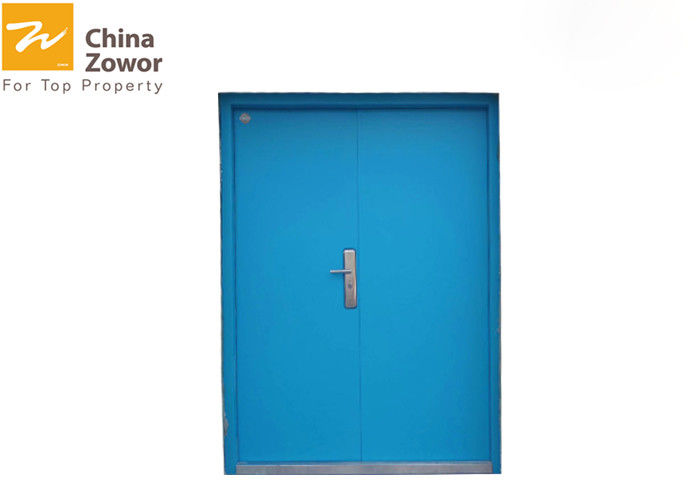

Residential Buildings Garage Entry Fire Door With Door Frame Binding

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: UL, CCC Model Number: ZW-GMFD05

Detail Information

Door Closer: 1 Door Frame: 1.2mm Cold Rolled Galvanized Steel Sheet
Door Frame Type: Binding Sideboard Width: 120mm 140mm(with Earing)
High Light:

garage entry fire door


flat entrance fire doors

Product Description

Fireproof Entry Doors Fire Entry Door with Door Frame Binding


Product Description
The Fire and anti-theft door of Zhongwo Company has excellent anti-theft performance and super Fire performance. Because of its solid structure and simple shape, it is widely used in high-rise residential buildings. The door frame which is made of high quality galvanized steel strip is rolled forming at one tiem thtough the special production line.

Technical Parameters


Door Closer 1
Door Frame 1.2mm Cold Rolled Galvanized Steel Sheet
Door Frame Type Binding
Sideboard Width 120mm 140mm(with earing)
Door Leaf 2 70mm
Door Mirror 1
Fire Lock 1
Fire Hinge 6
Fire Latch 2 160mm*25mm
Fire Intumescent Seals 15*2 (W*T mm)
Perlite Fire Door Core Board 1 (400±40)kg/m³
Draw board 1 20mm*2.4mm
Fire Sequencer 1
Skeleton of Door Leaf 1
Door Leaf Panel 4 0.8mm Cold Rolled Galvanized Steel Sheet
Pattern of Panel 9 Square Block
Class A
Grade A
Fire Resistance Rating 1.5 Hour
Name Fire-Proof Anti-Thief Door
Dimension 1200*2100 (mm)
Standards GB12955-2008


Besides, the door frame is also equipped with inlayed Fire expansion strips and installed with Fire seals.By closing there is no impact sound to hear.And thirdly the crossbeam and mullion are welded in 45 degree. The door fan made of high quality cold rolled galvanized steel plate is bent accurately through bending machine, inside of which it is filled with green environment friendly perlite plates which are key to its Fire funktion,and charackters of heat insulation and sound insulation. As to the surface treatment man introduces the process technology without welding spots, thus flat appearance.


Technical Specification

1. It’s designed based on GB12955-2008 Standards.

2. There is 3mm stiffening plate on the connection of Door Closer, Fire Hinge, Door Leaf and Door Frame.

3. There is C type skeleton with 1.8mm cold rolled galvanized steel sheet inside of the door leaf.
