Powder Coating Unequal Leaf Gal. Steel Fire Rated Exterior Doors/90 minute Insulated Fire Door

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : PEP Paper on both sides+ Foam Channel Around 4 Edges and Corners + Foam Plate on both sides on PEP Paper + Strong Carton Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets Per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM01

Detail Information

Material: Galvanized Steel Fire Rating: 30/60/90 Mins
Thickness Of Door Leaf: 55/45/40 Mm Frame Depth: 90/112/120 Mm
Thickness Of Steel Panel Of Door Leaf: 0.8 Mm Thickness Of Steel Panel Of Door Frame: 1.2 Mm
Size: Customized Surface Treatment: Powder Coating; Heat Transfer Printing
Infilling: Fireproof Perlite Board; Honeycomb Paper Application: Corridor, Stairwell, Pipeline Well, Electrical Cabinet Etc.
High Light:

steel fire door

,

fire rated interior doors

Product Description

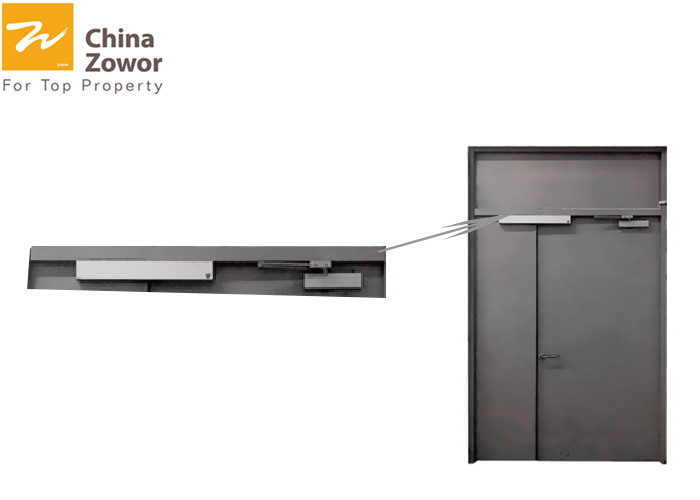

Powder Coating Unequal Leaf Gal. Steel Fire Rated Exterior Doors/90 minute Insulated Fire Door

Steel Fire Door



We provide you not just with fire doors basic life and property protection, but more to help form a comfortable and healthy living.

Zhongwo steel fire doors have different fire ratings and sizes which meet nearly all demands for fire safety from different circumstances.And we ensure our products can be assimilated into the entire decorative style of residential buildings with various colors and different processes of surface treatment. Besides, we adopt environment friendly materials in production of fire doors, which keep residents far away from gas or other pollution caused by unhealthy materials.





Specification

Product Name Regular Steel Fire Door
Fire Rating 30 min/60 min/ 90min
Certificate CCC, ISO9001:2008; UL; BS
Material Galvanized Steel
Door Leaf 0.8 mm Galvanized Steel Sheet
Door Frame 1.2 mm Galvanized Steel Sheet
Thickness of Door Leaf

90min: 55 mm

60min: 45 mm

30min:40 mm

Frame Depth

90min: 120 mm

60min: 112 mm

30min: 90 mm

Open Style Swing Open
Infilling Material

90min: 53 mm Fireproof Perlite Board(400±40kg/m3)

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper

Surface Treatment

Powder Coating;

Heat Transfer Printing

Copper Wire Drawing Process

Color

Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request

Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Glass

Single Open: 24mmX 350mmX 600mm

Double Open: 32mmX 350mmX 600mm

Or customized As Request

Fireproof Seal Strip

90min: FPJ-B-20X 2

60min: FPJ-A-15X 2

30min: FPJ-A-15X 2

Or Customized

Application Corridor, Stairwell, Pipeline Well, Electrical Cabinet etc.
Hardware High Quality Fire Lock, Fire Bolt, Fire Hinge, Fire Sequencer, Fir Door Closer and Others as Request
Package Inside PVC Films with Outside Paper Cartons or as Request
Delivery Time 35Days After Payment Received



Powder Coating Unequal Leaf Gal. Steel Fire Rated Exterior Doors/90 minute Insulated Fire Door 0





Product Advantage

Item Regular Steel Fire Door
Eco-friendly& Healthy Infilling Material All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
Top Appearance Quality Surface adopts technology without welding spots, so that to get smooth appearance.
Advanced Surface Treatment We introduce the process of heat transfer printing an d powder coating instead of traditional painting process to ensure the decorative and environment-friendly performance of steel fire door.
Top Flexibility All of our steel fire doors can smoothly open and close, definitely without the problem of jam or so.
Small Door Leaf Opening Force Door leaf opening force of our rosewood steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized Products Nearly all of our steel fire doors can be customized as your request.





Packing&Delivery
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Powder Coating Unequal Leaf Gal. Steel Fire Rated Exterior Doors/90 minute Insulated Fire Door 1





Why Choose Us?

1. All of our fire doors are in top quality and at competitive prices.

2. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.

3. All fire doors can be customized as your request.

4. More than 20 years experience in fire door industry.
