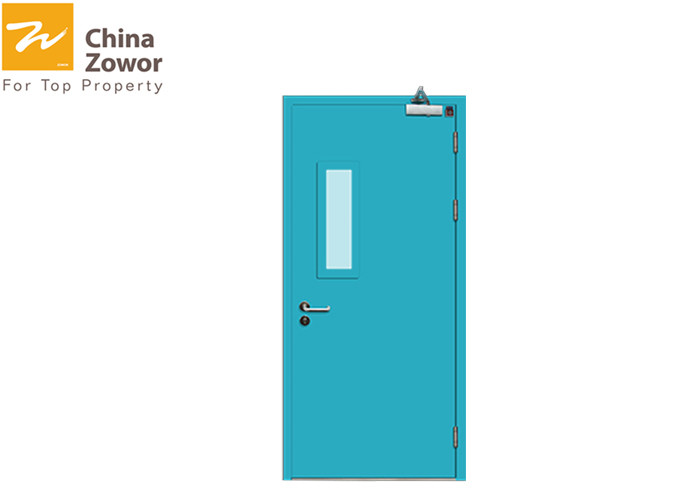

Single Swing Galvanized Steel Insulated Fire Door With Vision Panel For Apartment

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags With Outside Wooden Frame Delivery Time : 35 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 sets per day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS,WHI,UL, CCC Model Number: ZW-GM01

Detail Information

Thickness Of Steel Sheet For Door Leaf: 0.8 Mm Fire Protection Time: 30/ 60/ 90 Mins
Thickness Of Door Leaf: 40/45/55 Mm Material: Galvanized Steel
Infilling: Fireproof Perlite Board; Honeycomb Paper Surface Treatment: Powder Coating; Heat Transfer Printing
Open Direction: Outwards Color: As Your Request.
Size: Customized Application: Commercial/ Residential/ Industrial Buildings
High Light:

steel fire door


fire rated interior doors

Product Description

Single Swing Flush Panel 30/ 60/ 90 min Galvanized Steel Insulated Fire Door

Steel Insulated Fire Door



Product Description


Zhongwo single swing flush panel steel insulated fire door consists of various fire doors of different colors, sizes, fire ratings and surface treatment. Fire rating can be divided into three kinds: 30mins, 60mins and 90mins. As far as the colors and sizes are concerned, all of our single swing flush panel steel fire doors can be customized as your request. And thanks to different surface treatment methods our fire doors are not only beautiful and brilliant in appearance, they also are provided with many practical advantages such as high anti-corrosion performance, top anti-oxidation performance, best insulation performance and first-class integrity performance into various decorative styles. Thus, Zhongwo single swing flush panel steel insulated fire door can not only be used in traditionally thought industrial and general grade civil buildings, but also in many high-end commercial buildings such as star hotels, high-end office buildings and luxury shopping malls and so on.



  • Tidy and Smooth Surface: The appearance is very beautiful and can integrate into surrounding circumstances.
  • Flexible Opening: Door leaf opening force of our double swing flush panel steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
  • High Fire Integrity Performance:When fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds.
  • Top Fire Insulation Performance: Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃.
  • Eco-friendly& Healthy Infilling Material: All of our fireproof perlite boards must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
  • Customized Products: All of our stainless steel fire doors can be customized as your request.


Single Swing Galvanized Steel Insulated Fire Door With Vision Panel For Apartment 0



Product Name Single Swing Flush Panel Steel Insulated Fire Door
Fire Rating 30 min/60 min/ 90min
Certificate CCC, ISO9001:2008
Material of Door Leaf Galvanized Steel
Material of Door Frame Galvanized Steel
Thickness of Steel Sheet of Door Leaf 0.8 mm
Thickness of Steel Sheet of Door Frame 1.2 mm
Thickness of Door Leaf

90min: 55 mm

60min: 45 mm

30min:40 mm

Frame Depth

90min: 120 mm

60min: 112 mm

30min: 90 mm

Size Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request.
Open Style Swing Open
Infilling Material

90min: 53 mm Fireproof Perlite Board(400±40kg/m3)

60min: 43 mm Fireproof Perlite Board(300±30kg/m3)

30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper

Surface Treatment Powder Coating; Heat Transfer Printing

Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request

Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request

Fireproof Seal Strip

90min: FPJ-B-20X 2

60min: FPJ-A-15X 2

30min: FPJ-A-15X 2

Or Customized

Warranty 2 years
Package Inside Bubble Bags with Outside Wooden Frame or As Request
Delivery Time 35Days After Payment Received
