Single Swing 70 mm/ 90 mins/ 40 dB Soundproof Steel Insulate Fire Door
Contact Person : lan
Phone Number : 176 3354 0888
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Inside Bubble Bags with Outside Wooden Frame | Delivery Time : | 35 Days After Payment Received |
| Payment Terms : | western union, moneygram,cash, l/c, t/t | Supply Ability : | 600 sets per day |
| Place of Origin: | CHINA | Brand Name: | ZHONGWO |
|---|---|---|---|
| Certification: | BS， WHI， UL, CCC | Model Number: | ZW-GM02 |
|
Detail Information |
|||
| Product Name: | Single Open Powder Coating Steel Insulated Fire Door With Vertical Vision Panel | Fire Rating: | 1.5 Hours/1 Hour/0.5 Hour |
|---|---|---|---|
| Thickness Of Door Leaf: | 55/45/40 Mm | Door Frame: | 1.2 Mm Cold Rolled Galvanized Steel Sheet |
| Infilling: | Fireproof Perlite Board | Material: | Galvanized Steel |
| Glass: | Class A Composite Fireproof Glass | Open Direction: | Outwards |
| Surface Treatment: | Powder Coating | Application: | Industrial, Residential And Commercial Buildings |
| High Light: | steel fire door,fire rated interior doors |
||
Product Description
Product Description

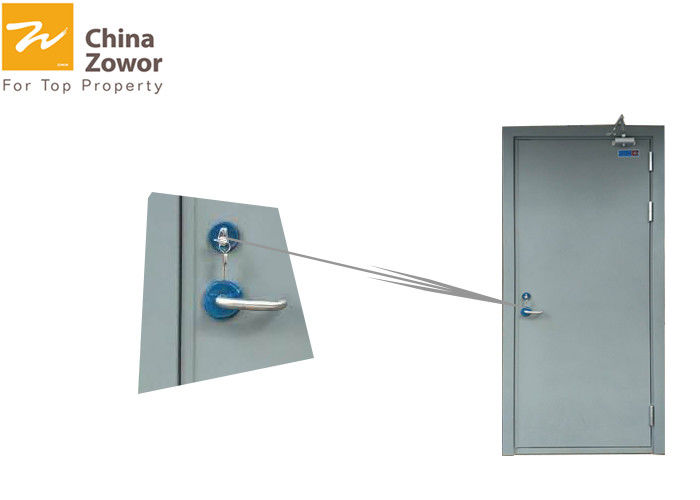

Zhongwo single open powder coating steel insulated fire door with vertical vision panel consists of various fire doors of different colors, sizes, fire ratings and surface treatment. And the sizes and fire ratings of vertical vision panel match individually the sizes and fire ratings of the entire doors. Fire rating of doors can be divided into three kinds: 30mins, 60mins and 90mins, so as the vertical vision panels. We not only provide you with fire doors with vertical vision panels of standard sizes (1000X 2300, 700X 2300, 700X 2100, 700X 2000) and popular colors on our color swatch (cold gray white, dark gray, milky white, matte orange and beige etc.), we can also customize fire doors for you 100% as your request.
Specification
| Product Name | Single Swing Flush Panel Steel Insulated Fire Door |
| Fire Rating | 30 min/60 min/ 90min |
| Certificate | CCC, ISO9001:2008 |
| Material of Door Leaf | Galvanized Steel |
| Material of Door Frame | Galvanized Steel |
| Thickness of Steel Sheet of Door Leaf | 0.8 mm |
| Thickness of Steel Sheet of Door Frame | 1.2 mm |
| Thickness of Door Leaf |
90min: 55 mm 60min: 45 mm 30min:40 mm |
| Frame Depth |
90min: 120 mm 60min: 112 mm 30min: 90 mm |
| Size | Standard: W1000X H2300(mm); 700X 2300(mm) or Customized As Your Request. |
| Open Style | Swing Open |
| Infilling Material |
90min: 53 mm Fireproof Perlite Board(400±40kg/m3) 60min: 43 mm Fireproof Perlite Board(300±30kg/m3) 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) |
| Glass | 32mmX 200mmX 900mm or Customized as Request |
| Surface Treatment | Powder Coating |
| Color | Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request |
| Fireproof Seal Strip |
90min: FPJ-B-20X 2 60min: FPJ-A-15X 2 30min: FPJ-A-15X 2 Or Customized |
| Warranty | 2 years |
| Package | Inside Bubble Bags with Outside Wooden Frame or As Request |
| Delivery Time | 35Days After Payment Received |
Product Advantage
| Item | Single Open Powder Coating Steel Insulated Fire Door with Vertical Vision Panel |
| Eco-friendly& Healthy Infilling Material | All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. |
| Tidy and Smooth Surface | The appearance is very beautiful and can integrate into surrounding circumstances. |
| Flexible Opening | Door leaf opening force of our double swing flush panel steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008. |
| High Fire Integrity Performance | When fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds. |
| Top Quality Fireproof Glass | All vertical vision panels of our fire doors are Class A composite insulated fireproof glasses, of which the fire ratings can be divided into 30/ 60/ 90 mins. |
| Top Fire Insulation Performance | Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. |
| Customized Products | Nearly all of our steel fire doors can be customized as your request. |
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
Packaging&Delivery
1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
