Single Swing Commercial Fire Rated Doors Solid Core Infilling BS UL Approved

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Pallet Delivery Time : 45 Days After Payment Received
Payment Terms : western union, moneygram,cash, l/c, t/t Supply Ability : 600 Sets per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-SM07

Detail Information

Material: Galvanized Steel Fire Rating: 30/60/90/120 Min
Finish: Prime Paint, Powder Coating, Wood Grain Thickness Of Door Leaf: 40/45mm
Thickness Of Steel Sheet For Door Leaf: 20-18-16 Ga. Thickness Of Steel Sheet For Door Frame: 18-16-14 Ga.
Infilling: Perlite Board; Honeycomb Paper, Mineral Core Glass: UL Listed Fireproof Glass
Opening Force: 66-68 N Opening Type: Swing Open
High Light:

fire proof door


fire protection door

Product Description

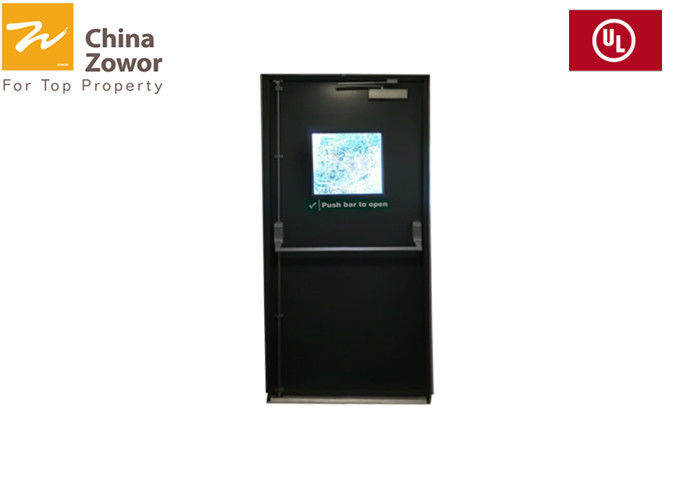

Single Swing Commercial Fire Rated Doors Solid Core Infilling BS UL Approved

Fire Safety Steel Door

Zhongwo fire door is a manufacturer of fire rated doors, fire windows and fire resistant roller shuter. In subdirectory of fire rated doors there are also wooden fire doors and metal fire doors(By us it means steel fire doors).
Founded in 1995, Zhongwo has developed into leading company in fire door industry in Henan province. Nowdays she has more than 400 workers and introduced world advanced machines, thanks to all of the above she can finish more than 1000 sets steel fire doors.

Product Description

Zhongwo steel fire doors are certified by different certifications companys. Our Bs certificate is awarded by Intertek, while UL certificate are issued by UL(China).
Zhongwo UL steel fire doors are directly tested in UL (China) according to NFPA252, UL10 (b), UL10 (c) and CAN / ULC S104 standards. In addition, the fire resistance evaluation of Zhongwo UL steel fire doors can be divided into 20 minutes, 30 minutes, 45 minutes, 60 minutes, 90 minutes and 120 minutes. It also handles 180 minute authentication.




a. Available in single or double fire door.

b. Size can be customized as your request.

c. Various color choices for different decoration style.

d. Different finishes range from powder coating via prime paint to wood grain.

e. American or british standard fire rating 30min, 60min, 90min, 120 min up to 180 min.

f. Clear or wired vision panel for up to 180 min fire rating.

g. All sets of UL listed hardware can be provided by us.

h. Self-operated installation team ready for your service.


More Specifications


Thickness of Door Leaf

US Standard Door: 40/45 mm
BS Standard Door: 45/50/55/64 mm

Frame Depth120/130/160 mm

Single Door: 3’X7’; 4’X8’
Double Door: 6’X7’; 8’X8’
Or customized

Open StyleSwing Open
Infilling Material

Standard: Fireproof Perlite Board
Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam

FinishPrime Paint(UV/PU), Powder Coating, Wood Grain


A. Reinforcement channel is provided.
B. Glass frame and glazing bead is steel.
C. Glass is UL listed glazing material.
D. Maximum allowable glass area:2 Hours, 100 sq. in. Per door leaf (Fire lite)
Color Options

Single Swing Commercial Fire Rated Doors Solid Core Infilling BS UL Approved 0


As standard we equip every door with galvanized steel hinges, locksets and high quality door closers. We can also send you panic push bar, fire bolts, magnetic door stoppers or other accessories as your request. Melting temperature of hardware installed in doors should be no less than 950℃.
Besides, we also have stainless steel hardware when you want.

Single Swing Commercial Fire Rated Doors Solid Core Infilling BS UL Approved 1
Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.
Standard: PE Paper+Double Layer Strong Carton or wooden pallet
We can also pack doors and frames as your request, just exchange the details with us.

Single Swing Commercial Fire Rated Doors Solid Core Infilling BS UL Approved 2
These doors can be used in high-rise buildings, metro railway stations, telecom centers, power plants, cellular network stations, garment processing units, shopping malls, industrial plants, multiplexes, hotels, auditoriums, software parks, restaurants, etc.
