RAL Color Steel Fire Rated Interior Doors Right / Left Handed Open Size 48'' X 96''

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Pallet Delivery Time : 45 Days After Payment Received
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 600 Sets Per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM0404

Detail Information

Standard: UL10(c), UL10(b) Material: Galvanized Steel
Fire Rating: 30/60/90/120/180 Mins Surface Treatment: Prime Paint(UV/PU), Powder Coating, Wood Grain
Thickness Of Door Leaf: 40/45/55 Mm Frame Depth: 90/112/120 Mm
Infilling: Fireproof Perlite Board Application: Commercial&Residential Buildings
Color: Customized Open Direction: Outwards, Left Or Right Hand
High Light:

steel fire door


fire rated interior doors

Product Description

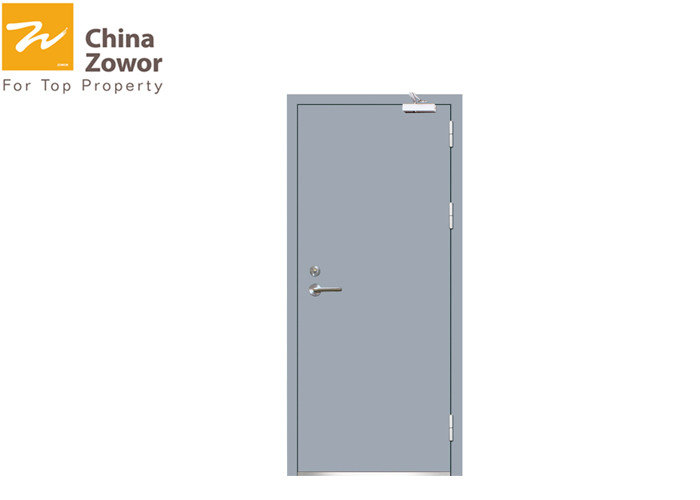

RAL Color Steel Fire Rated Interior Doors Right / Left Handed Open Size 48'' X 96''

Steel Fire Door


Fire doors are one of the measures for fire separation of buildings. They are usually required to be separated from smoke and fire at the entrance of the firewall, stairs, or the opening of the pipe well. Fire doors play an important role in preventing the spread and spread of smoke and fire and reducing losses.


Zhongwo steel fire doors are all tested in accordance with American or British Standard such as UL10(b) and UL10(c) and BS476:22 & EN1634:1. We can provide you with UL/WHI certificate or BS and EN certificates for various sizes and fire ratings.





Top Flexibility All of our steel fire doors can smoothly open and close, definitely without the problem of jam or so.
Small Door Leaf Opening Force Door leaf opening force of our rosewood steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
Customized Products Nearly all of our steel fire doors can be customized as your request.
Top Quality Fireproof Glass Our standard fireproof glass is Class A composite fireproof glass, which can fulfill the demand for fire protection, high transparency, scratch resistance and sound insulation all in one.





Standard infilling materials by us are fireproof perlite board with different densities in harmony with various fire ratings.

We have also mineral core, honeycomb paper and polyethylene foam for your options.



Sash Thickness


US Standard: 40/45 mm

BS Standard: 45/50/55/60/72 mm





As far as the surface treatment is concerned, we have different choices for you, too. Powder coating is our standard. And prime paint, wood grain finishes are basic options. By the way, prime paint means water-based paint.





For pair doors popular sizes by us are 6’X7’ and max. 8’X8’.

For single doors popular sizes by us are 3’X7’ and max. 4’X8’.

Customization is also acceptable.





The size of the glass listed is dictated by the required hourly rating. All glass used in fire rated doors is listed glass which maybe based on wire, laminated or solid ceramic material. Basic guidelines on glass are as follow:

2 Hours: Max exposed glazing 100 sq. Inch [ 0.06㎡] per door leaf.

Max exposed glazing width of 12 inch; height of 33 inch.



RAL Color Steel Fire Rated Interior Doors Right / Left Handed Open Size 48'' X 96'' 0





A. High impact applications

B. Frequent use applications

C. Utility Buildings

D. Commercial towers

E. Educational institutions

F. Health care center





Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.

Standard: PE Paper+Double Layer Strong Carton or wooden pallet

We can also pack doors and frames as your request, just exchange the details with us.





We put great importance in installation under the guiding ideology "30% Manufacture + 70% Installation= Complete High Quality Doors". We operate the self-owned installation team in order to provide perfect service fro you. All members on the team are trained under comprehensive system and before going to field installation the members must pass the internal examination.


RAL Color Steel Fire Rated Interior Doors Right / Left Handed Open Size 48'' X 96'' 1
