Steel Insulated Fire Door With Vision Panel /Walnut Wood Grain Finish/ Customized Color

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Inside Bubble Bags+ Strong Carton+Wooden Pallet Delivery Time : 45 Days After Payment Received
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 600 Sets Per Day
Place of Origin: CHINA Brand Name: ZHONGWO
Certification: BS, WHI, UL, CCC Model Number: ZW-GM0404

Detail Information

Standard: UL10(c), UL10(b) Material: Galvanized Steel
Fire Rating: 30/60/90/120/180 Mins Surface Treatment: Prime Paint(UV/PU), Powder Coating, Wood Grain
Thickness Of Door Leaf: 40/45/55 Mm Frame Depth: 90/112/120 Mm
Infilling: Fireproof Perlite Board Application: Commercial&Residential Buildings
Color: Customized Glass: UL Listed Fireproof Glass
High Light:

steel fire door


fire rated interior doors

Product Description

Steel Insulated Fire Door With Vision Panel /Walnut Wood Grain Finish/ Customized Color

Steel Fire Door

Zhongwo steel fire doors are all tested in accordance with American or British Standard such as UL10(b) and UL10(c) and BS476:22 & EN1634:1. We can provide you with UL/WHI certificate or BS and EN certificates for various sizes and fire ratings.
Zhongwo steel insulated fire door can not only be used in traditionally thought industrial and general grade civil buildings, but also in many high-end commercial buildings such as star hotels, high-end office buildings and luxury shopping malls and so on.
Standard infilling materials by us are fireproof perlite board with different densities in harmony with various fire ratings.
We have also mineral core, honeycomb paper and polyethylene foam for your options.
Fire Rating
Zhongwo steel fire doors meet the requirement for up to 180 mins(20/30/60/90/150/180mins) fire rating as American standard doors. And fire rating up to 120 mins(30/60/90mins) as British standard fire doors.
The size of the glass listed is dictated by the required hourly rating. All glass used in fire rated doors is listed glass which maybe based on wire, laminated or solid ceramic material. Basic guidelines on glass are as follow:
2 Hours: Max exposed glazing 100 sq. Inch [ 0.06㎡] per door leaf.
Max exposed glazing width of 12 inch; height of 33 inch.
●16,18,or 20 Ga.steel skins
●Fire mineral insulated core

●16 Ga.inverted top and bottom channels●Hardware reinforcements:
●Hardware reinforcements:

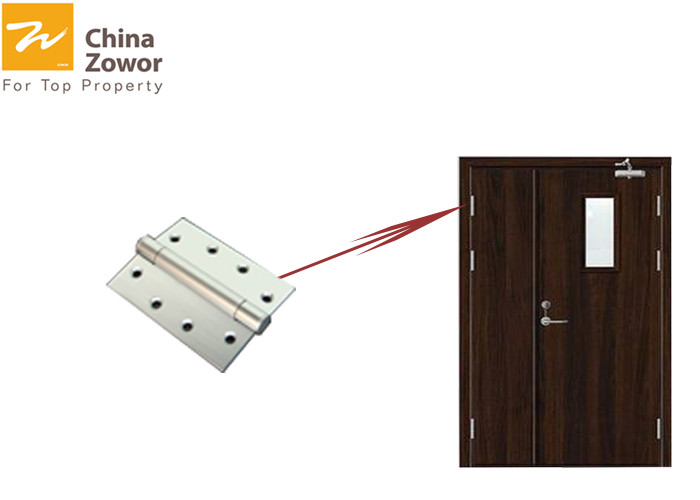

11 Ga. Hinge
12 Ga. Door closer
12 Ga. Door holder

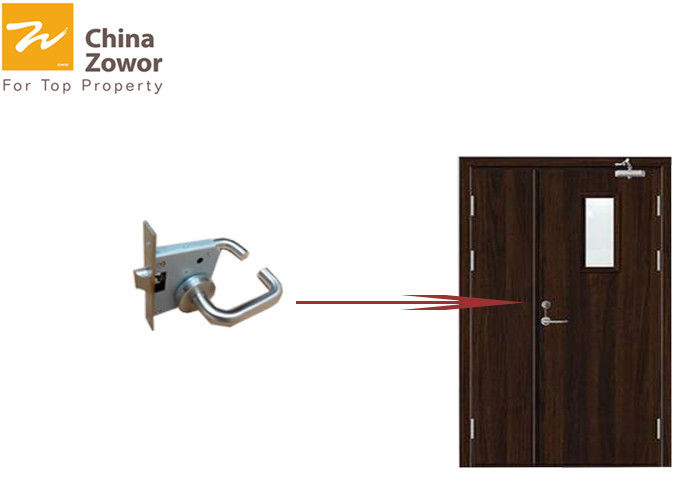

16 Ga. Lock/push bar
●Any RAL color as option
●Maximum size:
Single door width: 4' 0”

Single door height: 8' 0”
Double door width: 8' 0”
Double door height: 8' 0”

Steel Insulated Fire Door With Vision Panel /Walnut Wood Grain Finish/ Customized Color 0

Vision Panels

ItemSpec.CertificateGlass StripFire Rating
Glass Ceramic

203.2 X 608.6 X 5 mm

UL listed0.8 mm Gal. steel3 Hours
High Boron Glass203.2 X 608.6 X 6 mmUL listed0.8 mm Gal. steel3 Hours
CCC Glass200 X 600 X 32 mmCCC0.8 mm Gal. steel3 Hours

Attention: When the fire rating longer than 2 hours, we don’t suggest vision panels in doors.

Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.
Standard: PE Paper+Double Layer Strong Carton or wooden pallet
We can also pack doors and frames as your request, just exchange the details with us.
We put great importance in installation under the guiding ideology "30% Manufacture + 70% Installation= Complete High Quality Doors". We operate the self-owned installation team in order to provide perfect service fro you. All members on the team are trained under comprehensive system and before going to field installation the members must pass the internal examination.
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
6. More than 20 years experience in fire door industry.
